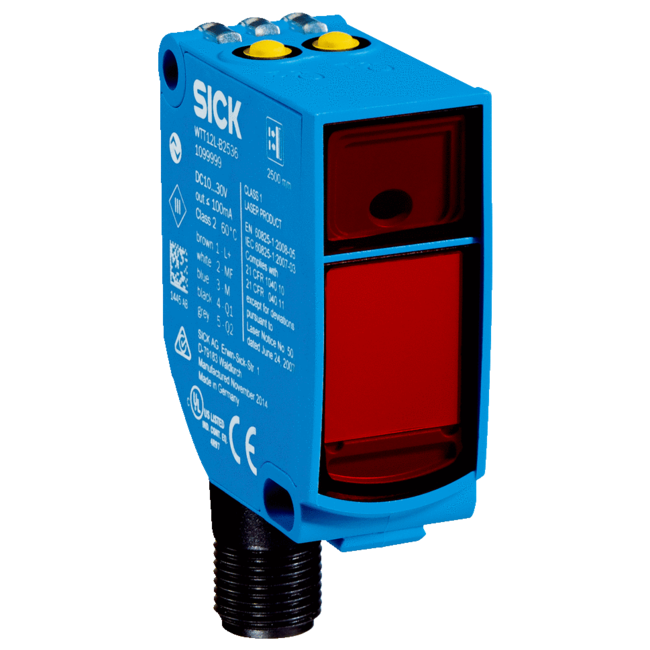

WTT12LC-B2553 SICK1082412WTT12LCB2553

Features: Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 20 mm x 49.6 mm x 44.2 mm; Housing design (light emission): Rectangular; Sensing range max.: 50 mm ... 1,800 mm 1); Sensing range: 100 mm ... 1,800 mm 2); Distance valueMeasuring range50 mm ... 1,800 mm 1)Resolution1 mmRepeatability1,2 mm ... 3,0 mm 3) 4) 5)AccuracyTyp. ± 20 mm 6)Typ. ± 15 mm 7): Distance value; Type of light: Visible red light; Light source: Laser 8); Light spot size (distance): Ø 12 mm (1,800 mm); Wave length: 658 nm; Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11); Adjustment: Single teach-in button (2 x)IO-Link; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1) 2); Ripple: ≤ 5 Vpp 3); Current consumption: 70 mA 4); Switching output: PUSH/PULL 5)PNPNPN; Number of switching outputs: 2 (Q1, Q2) 5); Switching mode: Light switching 5); Output current Imax.: ≤ 100 mA; Response time: ≤ 5 ms 6); Switching frequency: 100 Hz 7); Analog output: -; Input: MFin = multifunctional input programmable; Connection type: Male connector M12, 5-pin; Circuit protection: A 8)B 9)C 10); Protection class: III; Weight: 48 g; IO-Link version: 1.1; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP67; Ambient operating temperature: –35 °C ... +50 °C 11); Ambient storage temperature: –40 °C ... +70 °C; Warm-up time: < 15 min 12); Initialization time: < 300 ms; UL File No.: NRKH.E181493; Safety-related parameters: MTTFD: 138 years; DCavg: 0%; Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 5 ms; Process data length: 32 Bit; Process data structure: Bit 0 = switching signal QO1Bit 1 = switching signal QO2Bit 2 ... 8 = BDC 2 ... 8Bit 9 ... 15 = emptyBit 16 ... 31 = distance value; Additional features: 8 switching points for distance to object, of which 2 can be inverted, 1 switching point as switching window or configurable with hysteresis., multifunctional input: sender off, external teach, inactive; VendorID: 26; DeviceID HEX: 0x800147; DeviceID DEC: 8388935; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
