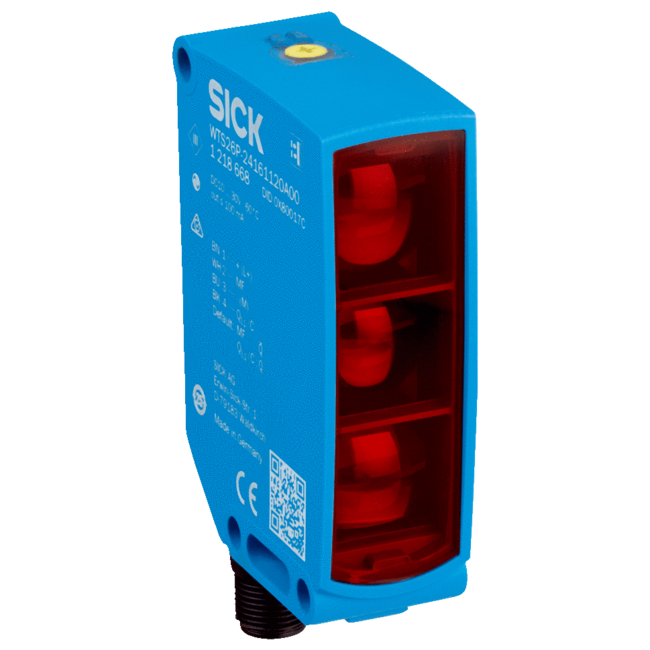

WTS26P-1H161120A00 SICK1218950WTS26P1H161120A00

Features: Sensor/ detection principle: Photoelectric proximity sensor, TwinEye technology, Background suppression; Dimensions (W x H x D): 24.6 mm x 82.5 mm x 53.3 mm; Housing design (light emission): Rectangular; Sensing range max.: 10 mm ... 1,000 mm 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): Ø 10 mm (550 mm); Wave length: 635 nm; AdjustmentTeach-Turn adjustmentBluePilot: for setting the sensing rangeIO-LinkFor configuring the sensor parameters and Smart Task functions: Adjustment; IndicationLED indicator blueBluePilot: sensing range indicatorLED indicator greenOperating indicatorStatic: power onFlashing: IO-Link modeLED indicator yellowStatus of received light beamStatic on: object presentStatic off: object not present: Indication; Pin 2 configuration: External Input (test), Teach-in, switching signal; Special applications: Detecting uneven, shiny objects; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp; Current consumption: 30 mA 2)50 mA 3); Switching output: PUSH/PULLPNPNPN; Output: QL1 / C: Switching output or IO-Link mode; Output function: Factory setting: Pin 2 / white (MF): NPN normally open (light switching), PNP normally closed (dark switching), Pin 4 / black (QL1 / C): NPN normally closed (dark switching), PNP normally open (light switching), IO-Link; Switching mode: Light/dark switching; Signal voltage PNP HIGH/LOW: Approx. VS – 2.5 V / 0 V; Signal voltage NPN HIGH/LOW: Approx. VS / < 2.5 V; Output current Imax.: ≤ 100 mA; Response time: ≤ 1.4 ms 4); Switching frequency: 350 Hz 5); Connection type: Cable, 2 m 6); Cable material: PVC; Circuit protection: A 7)B 8)C 9)D 10); Protection class: III; Weight: 130 g; IO-Link: ✔; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP66 (According to EN 60529)IP67 (According to EN 60529)IP69 (According to EN 60529) 11); Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493 & NRKH7.E181493; Safety-related parameters: MTTFD: 415 years; DCavg: 0%; Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 2.3 ms; Process data length: 16 Bit; Process data structure: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = empty; VendorID: 26; DeviceID HEX: 0x80017C; DeviceID DEC: 8388988; Smart Task: Smart Task name: Base logics; Logic function: DirectANDORWindowHysteresis; Timer function: DeactivatedOn delayOff delayON and OFF delayImpulse (one shot); Inverter: Yes; Switching frequency: SIO Direct: 350 Hz 1)SIO Logic: 300 Hz 2)IOL: 280 Hz 3); Response time: SIO Direct: 1.4 ms 1)SIO Logic: 1.65 ms 2)IOL: 1.75 ms 3); Repeatability: SIO Direct: 750 µs 1)SIO Logic: 800 µs 2)IOL: 900 µs 3); Switching signal QL1: Switching output; Switching signal QL2: Switching output; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
