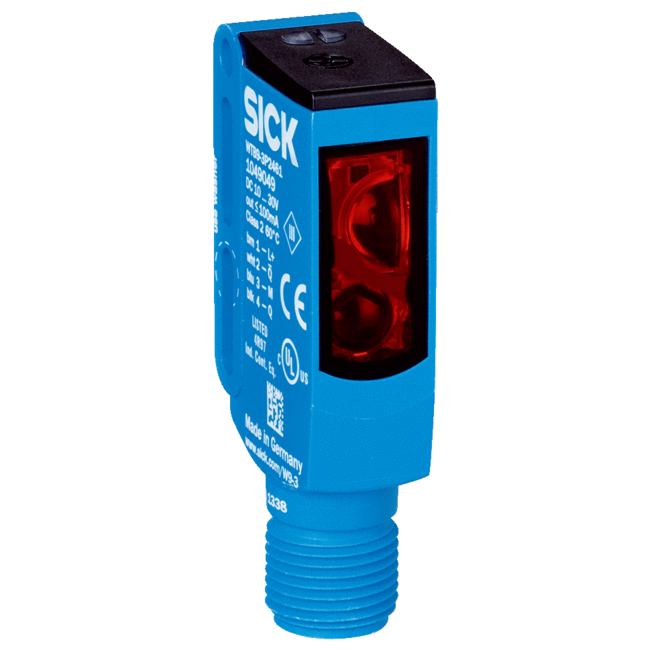

WTB9-3P2411S09 SICK1093450WTB93P2411S09

Features: Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 12.2 mm x 52.2 mm x 23.6 mm; Housing design (light emission): Rectangular; Mounting hole: M3; Sensing range max.: 20 mm ... 350 mm 1); Sensing range: 40 mm ... 250 mm 2); Type of light: Infrared light; Light source: LED 3); Light spot size (distance): Ø 20 mm (250 mm); Wave length: 850 nm; Adjustment: Potentiometer, 5 turns; Special features: Printed front screen for increased blind zone; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: < 5 Vpp 2); Power consumption: 30 mA 3); Switching output: PNP 4); Output function: Complementary; Switching mode: Light/dark switching 4); Output current Imax.: ≤ 100 mA 5); Response time: < 1 ms 6); Switching frequency: 500 Hz 7); Connection type: Male connector M12, 4-pin; Circuit protection: A 8)B 9)C 10); Protection class: III; Weight: 13 g; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP66IP67IP69K; Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
