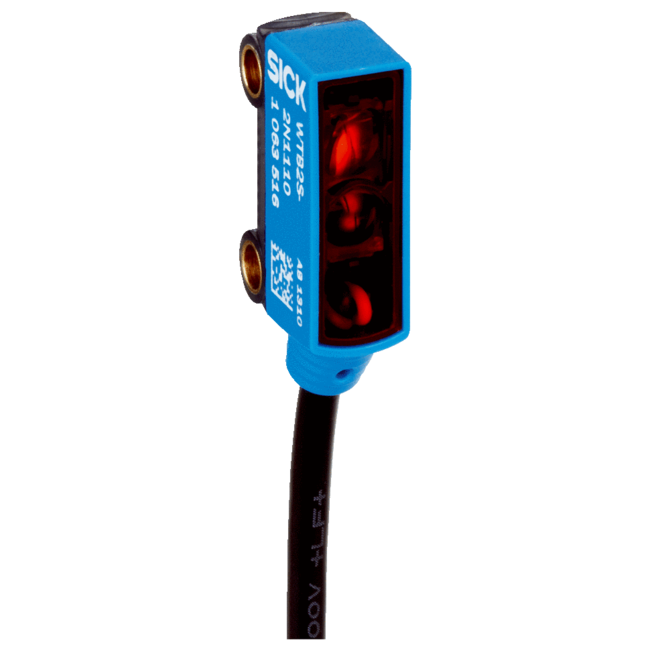

WTB2SC-2P1144S26 SICK1079773WTB2SC2P1144S26

Features: Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 7.7 mm x 21.8 mm x 13.5 mm; Housing design (light emission): Rectangular; Sensing range max.: 4 mm ... 110 mm 1); Sensing range: 10 mm ... 90 mm 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): Ø 4.4 mm (60 mm); Wave length: 640 nm; Adjustment: IO-Link; Pin 2 configuration: External input, Teach-in input, Sender off input, Detection output, logic output; Special applications: Detecting small objects; IO-Link functions: Standard functions; Special features: Switch-off delay, 32 msSensing range preset, 26 mm on white (90 % Remission); Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp 2); Current consumption: 20 mA 3); Switching output: PNP 4); Switching mode: Light switching 4); Switching mode selector: Programmable; Output current Imax.: < 50 mA; Response time: < 0.5 ms 5); Response time Q/ on Pin 2: 300 µs ... 450 µs 5) 6); Switching frequency: 1,000 Hz; Switching frequency Q / to pin 2: 1,000 Hz 6); Connection type: Cable, 4-wire, 2 m 7); Cable material: PVC; Cable diameter: Ø 3 mm; Circuit protection: A 8)B 9)D 10); Protection class: III; IO-Link: ✔; Transmission rate: COM2; Housing material: Plastic, ABS/PC; Optics material: Plastic, PMMA; Enclosure rating: IP67; Description: IO-Link; Ambient operating temperature: –25 °C ... +50 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493; Repeatability Q/ on Pin 2:: 150 µs 6); Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 2.3 ms; Process data length: 16 Bit; Process data structure: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = empty; VendorID: 26; DeviceID HEX: 0x800121; DeviceID DEC: 8388897; Smart Task: Smart Task name: Base logics; Logic function: DirectANDORWINDOWHysteresis; Timer function: DeactivatedOn delayOff delayON and OFF delayImpulse (one shot); Inverter: Yes; Switching frequency: SIO Direct: 1000 Hz 1)SIO Logic: 1000 Hz 2)IOL: 900 Hz 3); Response time: SIO Direct: 300 µs ... 450 µs 1)SIO Logic: 500 µs ... 600 µs 2)IOL: 500 µs ... 900 µs 3); Repeatability: SIO Direct: 150 µs 1)SIO Logic: 150 µs 2)IOL: 400 µs 3); Switching signal QL1: Switching output; Switching signal QL2: Switching output; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
