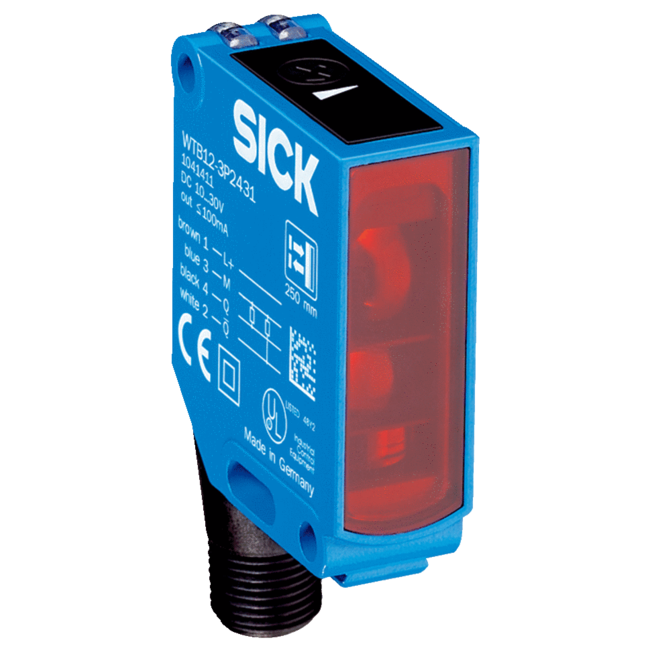

SICK WTB12-3P3431

WTB12-3P3431 SICK ⍾ 1075802 ⍾ WTB123P3431

Features: Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 15.6 mm x 48.5 mm x 42 mm; Housing design (light emission): Rectangular; Sensing range max.: 20 mm ... 350 mm 1); Sensing range: 20 mm ... 350 mm; Type of light: Visible red light; Light source: LED 2); Light spot size (distance): Ø 6 mm (200 mm); Wave length: 640 nm; Adjustment: Potentiometer, 5 turns; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp 2); Power consumption: 45 mA 3); Switching output: PNP; Output function: Complementary; Switching mode: Light/dark switching; Signal voltage PNP HIGH/LOW: > Uv - 2,5 V / ca. 0 V; Output current Imax.: 100 mA; Response time: ≤ 330 µs 4); Switching frequency: 1,500 Hz 5); Connection type: Cable with M12 male connector, 4-pin, 270 mm; Circuit protection: A 6)C 7)D 8); Protection class: III; Weight: 120 g; Housing material: Metal; Optics material: Plastic, PMMA; Enclosure rating: IP66IP67IP69K; Items supplied: 2 x clamps BEF-KH-W12, incl. screws; Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493 & NRKH7.E181493; Safety-related parameters: MTTFD: 599 years; DCavg: 0%; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
