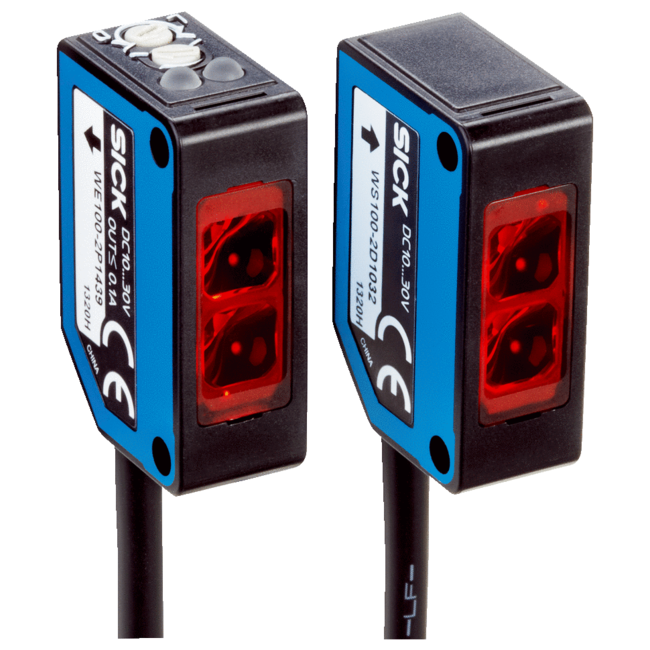

WS/WE100-2N1439S07 SICK6052400WSWE1002N1439S07

Features: Sensor/ detection principle: Through-beam photoelectric sensor; Dimensions (W x H x D): 11 mm x 31 mm x 20 mm; Housing design (light emission): Rectangular; Sensing range max.: 0 m ... 33 m; Sensing range: 0 m ... 20 m; Type of light: Visible red light; Light source: LED 1); Light spot size (distance): Ø 850 mm (12 m); Wave length: 632 nm; Adjustment: Potentiometer, 270° (Sensitivity); Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ± 10 % 2); Power consumption, sender: ≤ 15 mA 3); Power consumption, receiver: ≤ 20 mA 3); Switching output: NPN; Switching mode: Light/dark switching; Switching mode selector: Selectable via light/dark rotary switch; Signal voltage NPN HIGH/LOW: Approx. VS / < 1.8 V; Output current Imax.: 100 mA; Response time: ≤ 0.5 ms 4); Switching frequency: 1,000 Hz 5); Connection type: Cable, 3-wire, 2 m 6); Cable material: PVC; Conductor cross-section: 0.18 mm²; Circuit protection: A 7)B 8)D 9); Protection class: III; Housing material: Plastic, ABS/PC/POM; Optics material: Plastic, PMMA; Enclosure rating: IP67; Items supplied: 2 Stainless steel mounting brackets (1.4301/304) BEF-W100-A; Ambient operating temperature: –25 °C ... +55 °C; Ambient storage temperature: –40 °C ... +70 °C; Classifications: ECl@ss 5.0: 27270901; ECl@ss 5.1.4: 27270901; ECl@ss 6.0: 27270901; ECl@ss 6.2: 27270901; ECl@ss 7.0: 27270901; ECl@ss 8.0: 27270901; ECl@ss 8.1: 27270901; ECl@ss 9.0: 27270901; ECl@ss 10.0: 27270901; ECl@ss 11.0: 27270901; ETIM 5.0: EC002716; ETIM 6.0: EC002716; ETIM 7.0: EC002716; UNSPSC 16.0901: 39121528
