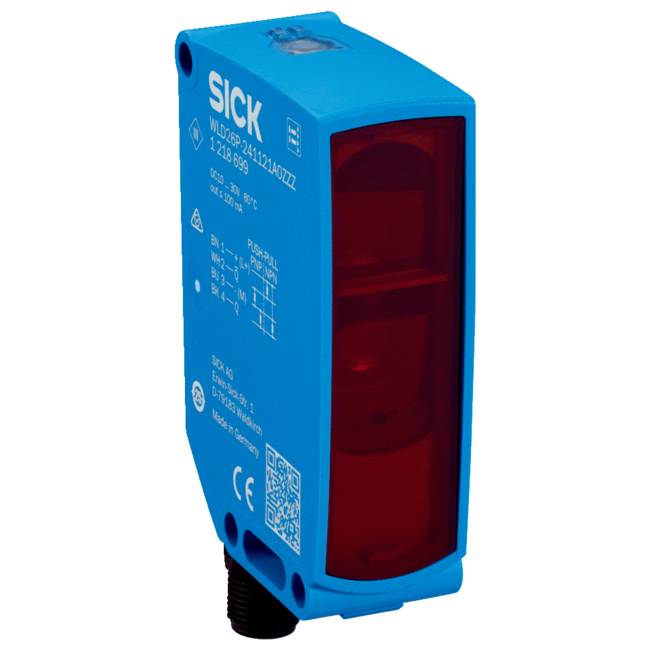

WLD26P-241121A0ZZZ SICK ⍾ 1218699 ⍾ WLD26P241121A0ZZZ

Features: Sensor/ detection principle: Photoelectric retro-reflective sensor, Dual lens; Dimensions (W x H x D): 24.6 mm x 82.5 mm x 53.3 mm; Housing design (light emission): Rectangular; Sensing range max.: 0.25 m ... 19 m 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): Ø 16 mm (1 m); Wave length: 635 nm; IndicationLED indicator greenOperating indicatorStatic: power onLED indicator yellowStatus of received light beamStatic: object not presentStatic off: object presentFlashing: Below the 1.5 function reserve: Indication; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp; Current consumption: 30 mA; Switching output: PUSH/PULLPNPNPN; Output function: Complementary, factory setting: Pin 2 / white: NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black: NPN normally open (dark switching), PNP normally closed (light switching); Switching mode: Light/dark switching; Signal voltage PNP HIGH/LOW: Approx. VS – 2.5 V / 0 V; Signal voltage NPN HIGH/LOW: Approx. VS / < 2.5 V; Output current Imax.: ≤ 100 mA; Response time: ≤ 500 µs 2); Switching frequency: 1,000 Hz 3); Connection type: Male connector M12, 4-pin; Circuit protection: A 4)B 5)C 6)D 7); Protection class: III; Weight: 80 g; Polarisation filter: ✔; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP66 (According to EN 60529)IP67 (According to EN 60529)IP69 (According to EN 60529) 8); Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493 & NRKH7.E181493; Safety-related parameters: MTTFD: 2,039 years; DCavg: 0%; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
