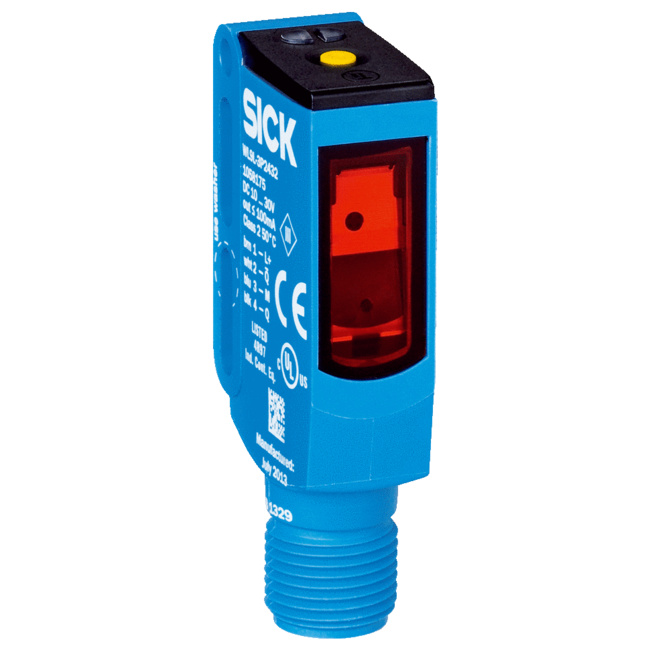

WL9LGC-3P2452A00 SICK1080952WL9LGC3P2452A00

Features: Sensor/ detection principle: Photoelectric retro-reflective sensor, autocollimation; Dimensions (W x H x D): 12.2 mm x 52.2 mm x 23.6 mm; Housing design (light emission): Rectangular; Mounting hole: M3; Sensing range max.: 0 m ... 3.5 m 1); Sensing range: 0 m ... 2.2 m 1); Type of light: Visible red light; Light source: Laser 2); Light spot size (distance): Ø 0.4 mm (60 mm); Wave length: 650 nm; Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11); Adjustment: IO-LinkSingle teach-in button; Diagnosis: Device contamination monitoring, Quality of teach-in; Pin 2 configuration: External input, Teach-in input, Sender off input, Detection output, logic output, Device contamination alarm output; AutoAdapt: ✔; Special applications: Detecting small objects, Detecting transparent objects; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: < 5 Vpp 2); Power consumption: 30 mA 3); Switching output: PNP 4); Output function: Complementary; Switching mode: Light/dark switching 4); Output current Imax.: ≤ 100 mA; Response time: ≤ 0.5 ms 5); Response time Q/ on Pin 2: 300 µs ... 450 µs 5) 6); Switching frequency: 1,000 Hz 7); Switching frequency Q / to pin 2: ≤ 1,000 Hz 8); Connection type: Male connector M12, 4-pin; Circuit protection: A 9)B 10)C 11); Protection class: III; Weight: 13 g; Polarisation filter: ✔; IO-Link: ✔; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP66IP67IP69K; Special feature: Detecting transparent objects; Ambient operating temperature: –10 °C ... +50 °C; Ambient operating temperature extended: –30 °C ... +55 °C 12) 13); Ambient storage temperature: –30 °C ... +70 °C; UL File No.: NRKH.E181493; Repeatability Q/ on Pin 2:: 150 µs 6); Safety-related parameters: MTTFD: 655 years (EN ISO 13849-1) 1); Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 2.3 ms; Process data length: 16 Bit; Process data structure: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = empty; VendorID: 26; DeviceID HEX: 0x800116; DeviceID DEC: 8388886; Smart Task: Smart Task name: Base logics; Logic function: DirectANDORWINDOWHysteresis; Timer function: DeactivatedOn delayOff delayON and OFF delayImpulse (one shot); Inverter: Yes; Switching frequency: SIO Direct: 1000 Hz 1)SIO Logic: 1000 Hz 2)IOL: 900 Hz 3); Response time: SIO Direct: 300 µs ... 450 µs 1)SIO Logic: 500 µs ... 600 µs 2)IOL: 500 µs ... 900 µs 3); Repeatability: SIO Direct: 150 µs 1)SIO Logic: 150 µs 2)IOL: 400 µs 3); Switching signal QL1: Switching output; Switching signal QL2: Switching output; Classifications: ECl@ss 5.0: 27270902; ECl@ss 5.1.4: 27270902; ECl@ss 6.0: 27270902; ECl@ss 6.2: 27270902; ECl@ss 7.0: 27270902; ECl@ss 8.0: 27270902; ECl@ss 8.1: 27270902; ECl@ss 9.0: 27270902; ECl@ss 10.0: 27270902; ECl@ss 11.0: 27270902; ETIM 5.0: EC002717; ETIM 6.0: EC002717; ETIM 7.0: EC002717; UNSPSC 16.0901: 39121528
