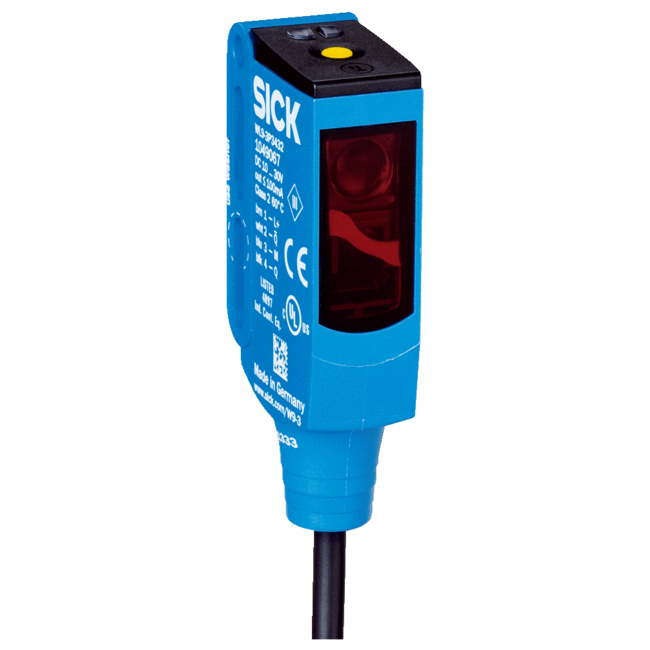

SICK WL9G-3P3432S03

WL9G-3P3432S03 SICK ⍾ 1084970 ⍾ WL9G3P3432S03

Features: Sensor/ detection principle: Photoelectric retro-reflective sensor, autocollimation; Dimensions (W x H x D): 12.2 mm x 50 mm x 23.6 mm; Housing design (light emission): Rectangular; Mounting hole: M3; Sensing range max.: 0 m ... 5 m 1); Sensing range: 0 m ... 3 m 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): Ø 45 mm (1.5 m); Wave length: 650 nm; Adjustment: Single teach-in button; AutoAdapt: ✔; Special applications: Detecting transparent objects; Special features: Optimized detection of bottles and trays under harsh conditions; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: < 5 Vpp 2); Power consumption: 20 mA 3); Switching output: PNP 4); Output function: Complementary; Switching mode: Light/dark switching 4); Output current Imax.: ≤ 100 mA 5); Response time: < 0.5 ms 6); Switching frequency: 1,000 Hz 7); Connection type: Cable with M12 male connector, 4-pin, 120 mm 8); Cable material: PVC; Conductor cross-section: 0.14 mm²; Circuit protection: A 9)B 10)C 11); Protection class: III; Weight: + 80 g; Polarisation filter: ✔; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP66IP67IP69K; Special feature: Detecting transparent objects; Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493; Safety-related parameters: MTTFD: 1,232 years; DCavg: 0%; Classifications: ECl@ss 5.0: 27270902; ECl@ss 5.1.4: 27270902; ECl@ss 6.0: 27270902; ECl@ss 6.2: 27270902; ECl@ss 7.0: 27270902; ECl@ss 8.0: 27270902; ECl@ss 8.1: 27270902; ECl@ss 9.0: 27270902; ECl@ss 10.0: 27270902; ECl@ss 11.0: 27270902; ETIM 5.0: EC002717; ETIM 6.0: EC002717; ETIM 7.0: EC002717; UNSPSC 16.0901: 39121528
