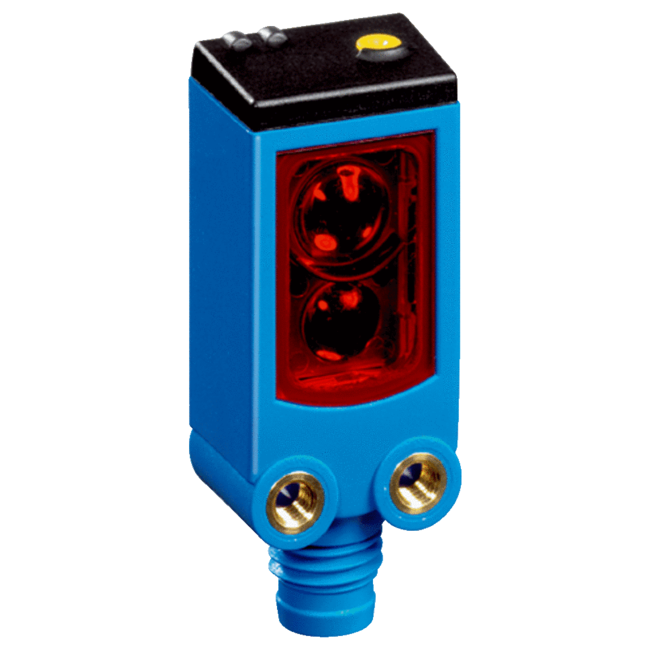

WL4C-3P2232A00 SICK1080930WL4C3P2232A00

Features: Sensor/ detection principle: Photoelectric retro-reflective sensor, Dual lens; Dimensions (W x H x D): 16 mm x 39.5 mm x 12 mm; Housing design (light emission): Rectangular; Sensing range max.: 0.01 m ... 4.5 m 1); Sensing range: 0.02 m ... 3.5 m 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): Ø 75 mm (1.5 m); Wave length: 650 nm; Adjustment: Single teach-in buttonIO-Link; Diagnosis: Device contamination monitoring, Quality of teach-in; Pin 2 configuration: External input, Teach-in input, Sender off input, Detection output, logic output, Device contamination alarm output; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: < 5 Vpp 2); Power consumption: 20 mA 3); Switching output: PNP; Output function: Complementary; Switching mode: Light/dark switching; Output current Imax.: ≤ 100 mA; Response time: < 0.5 ms 4); Response time Q/ on Pin 2: 300 µs ... 400 µs 4) 5); Switching frequency: 1,000 Hz 6); Switching frequency Q / to pin 2: 1,000 Hz 7); Connection type: Male connector M8, 4-pin; Circuit protection: A 8)C 9)D 10); Protection class: III; Weight: 30 g; Polarisation filter: ✔; Housing material: Plastic, ABS; Optics material: Plastic, PMMA; Enclosure rating: IP67IP66; Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493 & NRKH7.E181493; Repeatability Q/ on Pin 2:: 150 µs 5); Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 2.3 ms; Process data length: 16 Bit; Process data structure: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = empty; VendorID: 26; DeviceID HEX: 0x800100; DeviceID DEC: 8388864; Smart Task: Smart Task name: Base logics; Logic function: DirectANDORWINDOWHysteresis; Timer function: DeactivatedOn delayOff delayON and OFF delayImpulse (one shot); Inverter: Yes; Switching frequency: SIO Direct: 1000 HzSIO Logic: 1000 HzIOL: 900 Hz; Response time: SIO Direct: 300 µs ... 450 µs 1)SIO Logic: 500 µs ... 600 µs 2)IOL: 500 µs ... 900 µs 3); Repeatability: SIO Direct: 150 µs 1)SIO Logic: 150 µs 2)IOL: 400 µs 3); Switching signal QL1: Switching output; Switching signal QL2: Switching output; Classifications: ECl@ss 5.0: 27270902; ECl@ss 5.1.4: 27270902; ECl@ss 6.0: 27270902; ECl@ss 6.2: 27270902; ECl@ss 7.0: 27270902; ECl@ss 8.0: 27270902; ECl@ss 8.1: 27270902; ECl@ss 9.0: 27270902; ECl@ss 10.0: 27270902; ECl@ss 11.0: 27270902; ETIM 5.0: EC002717; ETIM 6.0: EC002717; ETIM 7.0: EC002717; UNSPSC 16.0901: 39121528
