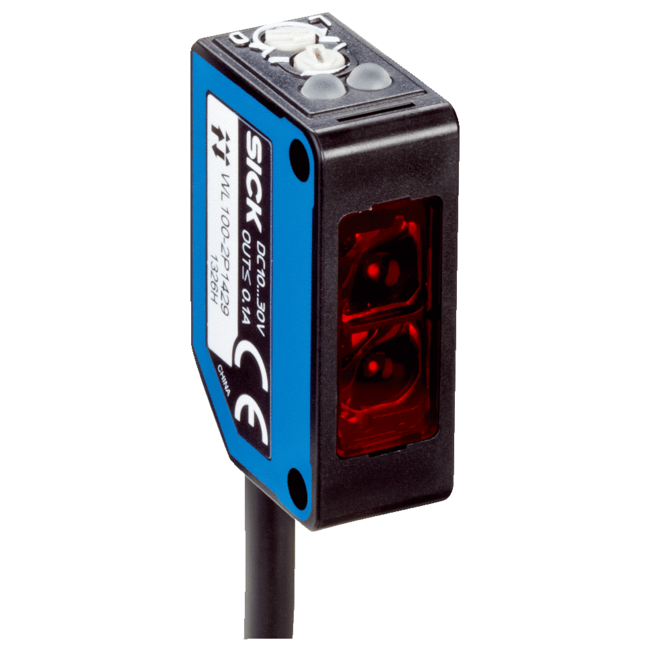

WL100-2P1332S17 SICK6052390WL1002P1332S17

Features: Sensor/ detection principle: Photoelectric retro-reflective sensor, Dual lens; Dimensions (W x H x D): 11 mm x 31 mm x 20 mm; Housing design (light emission): Rectangular; Sensing range max.: 0.01 m ... 7.2 m 1); Sensing range: 0.01 m ... 5.5 m 1); Type of light: Visible red light; Light source: LED 2); Light spot size (distance): Ø 280 mm (4 m); Wave length: 632 nm; Adjustment: None; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ± 10 % 2); Current consumption: 30 mA 3); Switching output: PNP; Switching mode: Light switching; Signal voltage PNP HIGH/LOW: UV - 1,8 V / ca. 0 V; Output current Imax.: 100 mA; Response time: ≤ 0.5 ms 4); Switching frequency: 1,000 Hz 5); Connection type: Cable with M12 male connector, 4-pin, 290 mm 6); Cable material: PVC; Conductor cross-section: 0.18 mm²; Circuit protection: A 7)B 8)D 9); Protection class: III; Polarisation filter: ✔; Housing material: Plastic, ABS/PC/POM; Optics material: Plastic, PMMA; Enclosure rating: IP67; Ambient operating temperature: –25 °C ... +55 °C; Ambient storage temperature: –40 °C ... +70 °C; Classifications: ECl@ss 5.0: 27270902; ECl@ss 5.1.4: 27270902; ECl@ss 6.0: 27270902; ECl@ss 6.2: 27270902; ECl@ss 7.0: 27270902; ECl@ss 8.0: 27270902; ECl@ss 8.1: 27270902; ECl@ss 9.0: 27270902; ECl@ss 10.0: 27270902; ECl@ss 11.0: 27270902; ETIM 5.0: EC002717; ETIM 6.0: EC002717; ETIM 7.0: EC002717; UNSPSC 16.0901: 39121528
