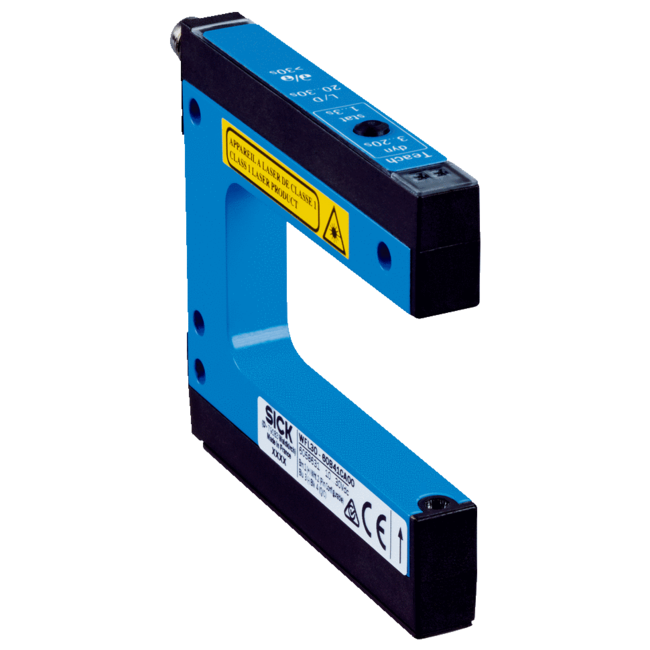

WFL50-40B41CA70 SICK6058645WFL5040B41CA70

Features: Functional principle: Optical detection principle; Dimensions (W x H x D): 10 mm x 88.5 mm x 47 mm; Housing design (light emission): Fork shaped; Fork width: 50 mm; Fork depth: 42 mm; Minimum detectable object (MDO): 0.05 mm; Light source: Laser, visible red light; Wave length: 670 nm; Laser class: I; Adjustment: Teach-in button (Teach-in, sensitivity, light/dark switching, key lock)Cable (Teach-in dynamic); Teach-in mode: 1-point teach-in2-point teach-inTeach-in dynamic; Output function: Light/darkswitching, selectable via button; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: < 10 % 2); Power consumption: 40 mA 3); Switching frequency: 11 kHz 4); Response time: 60 µs 5); Stability of response time: ± 20 µs; Jitter: 22 µs; Switching output: PUSH/PULL; Switching output (voltage): Push/Pull: High = VS - < 2 V / Low: ≤ 2 V; Switching output: Light/dark switching; Output current Imax.: 100 mA; Input, teach-in (ET): Teach: U > 5 V ... < UVRun: U < 4 V; Initialization time: 40 ms; Time delay: Switch-off delay, 0 ms / 8 ms / 16 ms / 32 ms / 65 ms / 130 ms / 260 ms / 520 ms, adjustable (0 ms = default); Connection type: Male connector M8, 4-pin; Ambient light immunity: Sunlight: ≤ 10,000 lx; Protection class: III 6); Circuit protection: UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression; Enclosure rating: IP65; Weight: Approx. 36 g ... 160 g 7); Housing material: Metal, Aluminum; Communication interface: Communication interface: IO-Link; Cycle time: 2.3 ms; Process data length: 16 Bit; Process data structure A: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 = not usedBit 3 = Teach busyBit 4 ... 15 = empty; Process data structure B: Bit 0 = switching signal QL1Bit 1 = Quality of Run AlarmBit 2 = not usedBit 3 = Teach busyBit 4 ... 15 = empty; Process data structure C: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 = not usedBit 3 = Teach busyBit 4 ... 5 = emptyBit 6 ... 15 = measuring value; Process data structure D: Bit 0 = switching signal QL1Bit 1 = Quality of Run AlarmBit 2 = not usedBit 3 = Teach busyBit 4 ... 5 = emptyBit 6 ... 15 = measuring value; Process data structure E: Bit 0 = switching signal QL1 (AFC Q1 Output)Bit 1 = switching signal QL2 (AFC Q2 Output)Bit 2 ... 15 = time measurement value; VendorID: 26; DeviceID HEX: 8000AF; DeviceID DEC: 8388783; Ambient data: Ambient operating temperature: –20 °C ... +50 °C 1); Ambient storage temperature: –30 °C ... +80 °C; Shock load: According to EN 60068-2-27; Classifications: ECl@ss 5.0: 27270909; ECl@ss 5.1.4: 27270909; ECl@ss 6.0: 27270909; ECl@ss 6.2: 27270909; ECl@ss 7.0: 27270909; ECl@ss 8.0: 27270909; ECl@ss 8.1: 27270909; ECl@ss 9.0: 27270909; ECl@ss 10.0: 27270909; ECl@ss 11.0: 27270909; ETIM 5.0: EC002720; ETIM 6.0: EC002720; ETIM 7.0: EC002720; UNSPSC 16.0901: 39121528
