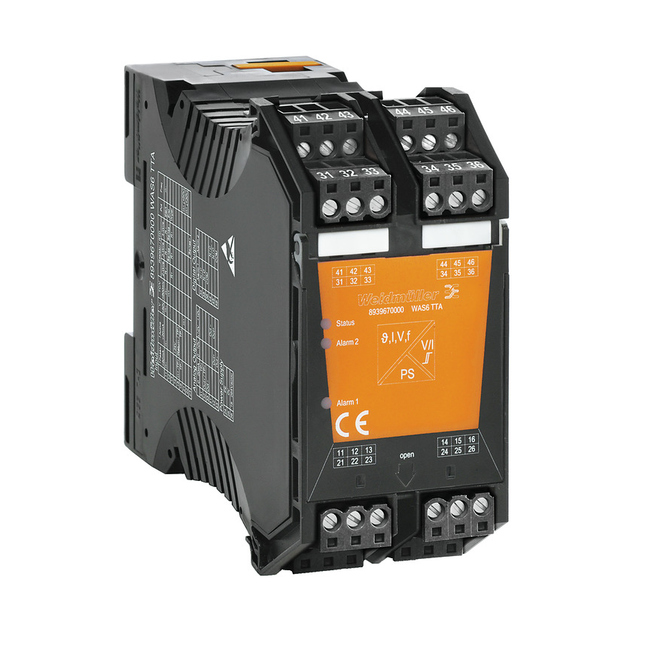

WAS6 TTA Weidmüller ⍾ 8939670000 ⍾ WAS6TTA

Universal measurement isolating converters and trip amplifiers; can be configured with PCUniversal measurement isolating converters and trip amplifiers in 45 mm width with external supply for voltage and sensors, for transmitting and isolating analogue DC current -20 to 50 mA, voltages -200 to 500 mV/ -20 to 50 V, 2-/3-/-4-wire RTD, resistors, thermocouples according to IEC 584 and frequencies up to 100 kHz( 2- / 3-wire sensors).Two switching outputs (CO contact) for alarms, analogue DC voltages (-10 to +10 V) and current outputs (0 to 20 mA) are available on the output side.The component can be configured with a PC using the proprietary TTA-Set software.

Type

Universal signal converter

Weight

0.26 kg

Dimensions

112.4 mm x 45 mm

EAN

4032248721078
