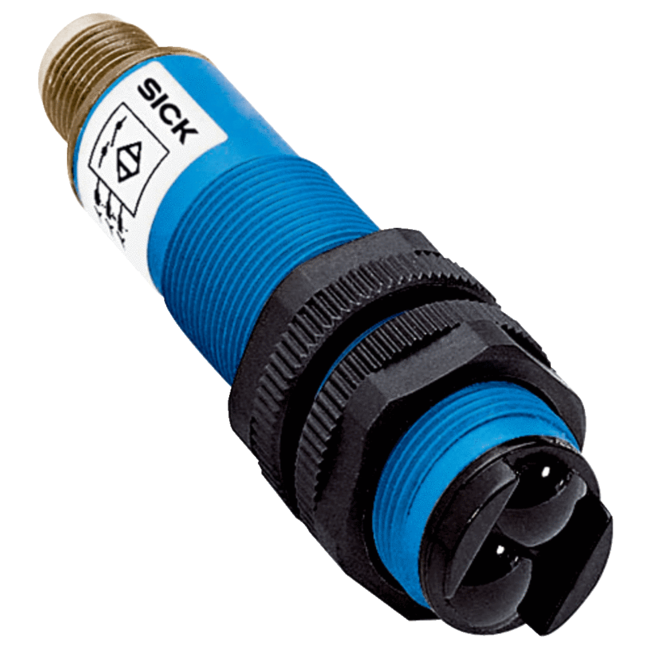

VT18-2T1132 SICK6011371VT182T1132

Features: Sensor/ detection principle: Photoelectric proximity sensor, Energetic; Dimensions (W x H x D): 18 mm x 18 mm x 88 mm; Housing design (light emission): Cylindrical; Housing length: 88 mm; Thread diameter (housing): M18 x 1; Optical axis: Axial; Sensing range max.: 2 mm ... 200 mm 1); Sensing range: 3 mm ... 180 mm; Type of light: Infrared light; Light source: LED 2); Light spot size (distance): Ø 24 mm (200 mm); Angle of dispersion: Approx. 3.5°; Adjustment: None; Mechanics/electronics: Supply voltage: 20 V AC ... 253 V AC 1); Mains frequency: 50 Hz, 60 Hz; Current consumption: 30 mA 2); Switching output: TRIAC; Switching mode: Light switching; Output current Imax.: 300 mA 3); Response time: ≤ 20 ms 4); Switching frequency: 25 Hz 5); Connection type: Cable, 3-wire, 2 m 6); Cable material: PVC; Conductor cross-section: 0.34 mm²; Cable diameter: Ø 4.7 mm; Circuit protection: C 7); Protection class: III; Weight: 95 g; Housing material: Plastic, PBT/PC; Optics material: Plastic, PMMA; Enclosure rating: IP67; Ambient operating temperature: –25 °C ... +70 °C; UL File No.: NMFT2.E175606; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
