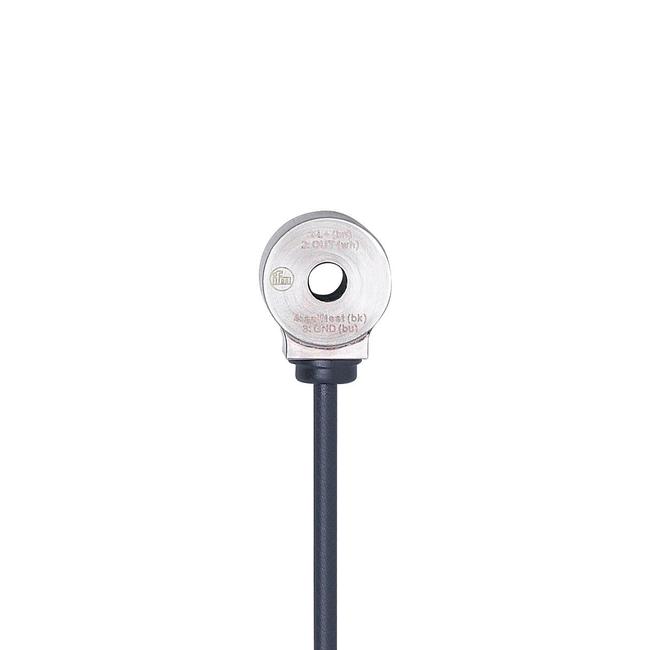

VSA004 ifm ⍾ VIBRATION SENSOR

Acceleration sensor; Operating voltage [V] : 7.2...10.8 DC; Min. insulation resistance [MΩ] : 100; (500 V DC); Protection class : III; Reverse polarity protection : yes; Sensor type : microelectromechanical system (MEMS); Analogue current output [mA] : 0...10; Max. load [Ω] : 300; Measuring range of vibration [g] : -25...25; Frequency range [Hz] : 1...10000; Measuring principle : capacitive; Sensitivity [µA/g] : 142; Number of measurement axes : 1; Linearity deviation : 0,2 %; Ambient temperature [°C] : -20...80; Note on ambient temperature : cULus: < 80 °C; Storage temperature [°C] : -20...80; Max. relative air humidity [%] : 80; (40 °C: 50 % non condensing); Type of mounting : mounting screw; Materials : housing: stainless steel (1.4404 / 316L); Tightening torque [Nm] : 5; Mechanische Überlastfestigkeit [g] : 500; Drag chain suitability : yes; Drag chain suitability : bending radius for fixed installation: : min. 4 x cable diameter | bending radius for flexible use: : min. 15 x cable diameter; Items supplied : head cap screw: 1 x M5 x 20, Torx 15; Cable: 3 m, PUR, Ø 4 mm, shielded; Maximum cable length: 250 m; drain wire connected to the housing; 4 x 0.14 mm²

Type

Systems for vibration monitoring and diagnostics

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of analogue inputs: 1; Number of digital outputs: 2; Number of analogue outputs: 1

Current consumption

< 15 mA

Voltage supply

24 V

Display

function: 6 x LED, green | pre-alarm: 1 x LED, yellow | main alarm: 1 x LED, red | measured values: 7-segment LED display, red / yellow / green 4-digit

Degree of protection

IP 67

Weight

120.5 g

Dimensions

36 x 37.6 x 62.4 mm
