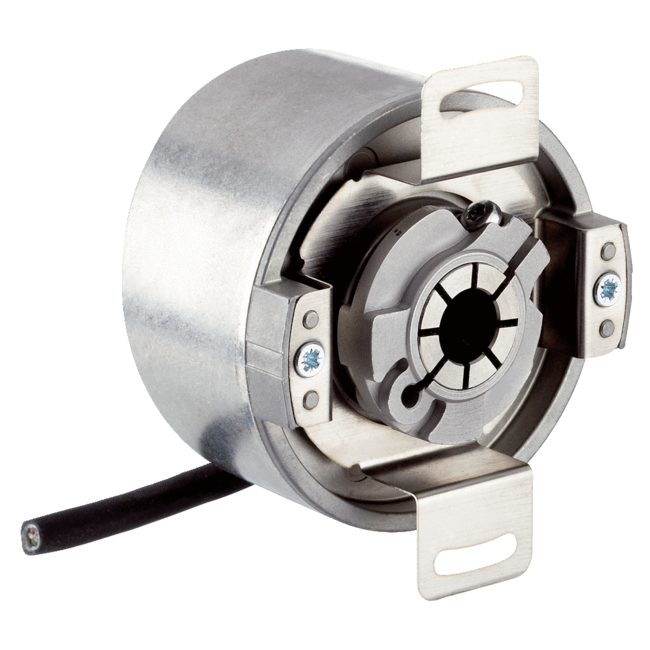

VFS60E-BHAK01024 SICK1036453

Performance: Number of lines per revolution: 1,024; Reference signal, number: 1; Reference signal, position: 90° electric, logically gated with A and B; Measuring step deviation: ± 0.2°; Interfaces: Communication interface: Incremental; Electrical data: Connection type: Cable, 8-wire, radial, 1.5 m 1); Supply voltage: 4.5 V ... 5.5 V; Power consumption: 40 mA 2); Maximum output frequency: ≤ 300 kHz; Maximum load current: ≤ 30 mA; Mechanical data: Shaft version: Blind hollow shaft; Shaft diameter: 15 mm; Shaft material: Metal; Flange type / stator coupling: Standard; Dimensions: See dimensional drawing; Weight: 0.2 kg; Moment of inertia of the rotor: 40 gcm²; Operating speed: 6,000 min⁻¹ 1); Angular acceleration: ≤ 500,000 rad/s²; Operating torque: 0.6 Ncm (+20 °C); Start up torque: 0.8 Ncm (+20 °C); Permissible movement of the drive element, static: ± 0.3 mm radial± 0.5 mm axial; Permissible movement of the drive element, dynamic: ± 0.1 mm radial± 0.2 mm axial; Life of ball bearings: 3.0 x 10^9 revolutions; Ambient data: Operating temperature range: –30 °C ... +100 °C; Storage temperature range: –40 °C ... +100 °C, without package; Relative humidity/condensation: 90 %, condensation of the optical scanning not permitted; Resistance to shocks: 70 g, 6 ms (according to EN 60068-2-27); Frequency range of resistance to vibrations: 30 g, 10 Hz ... 2,000 Hz (according to EN 60068-2-6); EMC: According to EN 61000-6-2 and EN 61000-6-4; Enclosure rating: IP65, shaft side (according to IEC 60529)IP67, housing side, cable connection (according to IEC 60529); Classifications: ECl@ss 5.0: 27270501; ECl@ss 5.1.4: 27270501; ECl@ss 6.0: 27270590; ECl@ss 6.2: 27270590; ECl@ss 7.0: 27270501; ECl@ss 8.0: 27270501; ECl@ss 8.1: 27270501; ECl@ss 9.0: 27270501; ECl@ss 10.0: 27273805; ECl@ss 11.0: 27273901; ETIM 5.0: EC001486; ETIM 6.0: EC001486; ETIM 7.0: EC001486; UNSPSC 16.0901: 41112113
