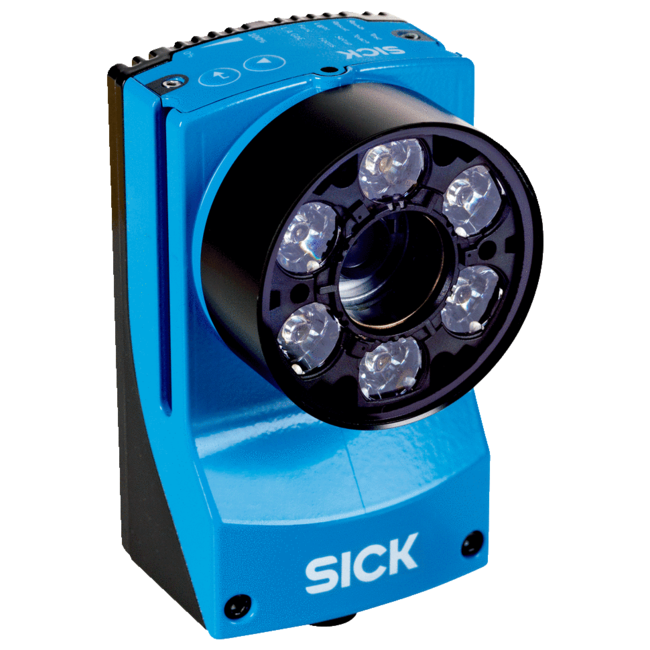

V2D631R-MISCB8 SICK1080070V2D631RMISCB8

Features: Variant: Complete device; Optical focus: Adjustable focus (manually); Sensor: CMOS matrix sensor, grayscale values; Sensor resolution: 1,280 px x 1,024 px; Light sourceInternal lightingLED, Visible, White, 6,000 K, ± 500 KFeedback spotLED, Visible, green, 525 nm, ± 15 nmFeedback spotLED, Visible, Red, 630 nm, ± 20 nm, RG 1Adjustment aidLaser, Visible, Red, 630 nm ... 680 nm: Light source; Laser class: 1, complies with 21 CFR 1040.10 except for the tolerance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014); Scanning frequency: ≤ 50 Hz, With resolution of 1.3 megapixels; Code resolution: ≥ 0.1 mm 1); Reading distance: 50 mm ... 2,200 mm 1); LensS-mountFocal length9.6 mmAperturef/8: Lens; Mechanics/electronics: Connection type: 1 x M12, 17-pin plug (serial, CAN, I/Os, power supply)1 x M12, 8-pin socket (Ethernet, 1 GBit/s)1 x M8, 4-pin socket (USB)1 x M12, 4-pin socket (external illumination control); Supply voltage: 12 V DC ... 24 V DC, ± 20 %; Power consumption: Typ. 10 W, ± 20 %; Output current: ≤ 100 mA; Housing: Aluminum die cast; Enclosure rating: IP67 (EN 60529 (1991-10), EN 60529/A2 (2002-02)); Electrical safety: EN 60950-1 (2011-01); Weight: 450 g; Dimensions (L x W x H): 108 mm x 63.1 mm x 59.1 mm; Performance: Readable code structures: 1D codes, Stacked, 2D codes; Bar code types: GS1-128 / EAN 128, UPC / GTIN / EAN, Interleaved 2 of 5, Pharmacode, GS1 DataBar, Code 39, Code 128, Codabar, Code 32, Code 93, USPS (Postnet, Planet, USPS4SCB), Australian Post, Dutch KIX Post, Royal Mail, Swedish Post; 2D code types: Data Matrix ECC200, GS1 Data-Matrix, MaxiCode, QR code; Stacked code types: PDF417; Code qualification: On the basis of ISO/IEC 16022, ISO/IEC 15415, ISO/IEC 18004; Interfaces: Ethernet✔ , TCP/IPFunctionHost, AUX, FTP (image transmission)Data transmission rate10/100/1,000 Mbit/s: Ethernet; PROFINET✔FunctionPROFINET Single Port (integrated), PROFINET Dual Port (optional via external connection module CDF600-2)Data transmission rate10/100 MBit/s: PROFINET; EtherNet/IP™✔Data transmission rate10/100/1,000 Mbit/s: EtherNet/IP™; Serial✔ , RS-232, RS-422FunctionHost, AUXData transmission rate0.3 kBaud ... 115.2 kBaud, AUX: 57.6 kBaud (RS-232): Serial; CAN✔FunctionSICK CAN sensor network CSN (master/slave, multiplexer/server)Data transmission rate250 kbit/s ... 500 kbit/s: CAN; PROFIBUS DP✔Type of fieldbus integrationOptional over external fieldbus module CDF600-2: PROFIBUS DP; USB✔RemarkUSB 2.0 (for parameterization only)FunctionAUX: USB; Digital inputs: 4 (“Sensor 1”, “Sensor 2”, 2 inputs via optional CMC600 parameter memory in CDB650/CDM420); Configurable inputs: Encoder input, external trigger; Digital outputs: 6 (CDB650: “Result 1”, “Result 2”, “Result 3”, “Result 4”, 2 external outputs via CMC600 or CDM420: “Result 1”, “Result 2”, 2 external outputs via CMC600 or cable with open end: “Result 1”, “Result 2”, “Result 3”, “Result 4”); Configurable outputs: Good read, External illumination control, free configurable output condition, "device ready"; Reading pulse: Digital inputs, non-powered, serial interface, Ethernet, CAN, auto pulse, presentation mode; Optical indicators: 11 LEDs (5 x status display, 5 x LED bar graph, 1 green/red feedback spot); Acoustic indicators: Beeper (configurable); Control elements: 2 buttons (choose and start/stop functions); Operator interfaces: Web server; Configuration software: SOPAS ET; Memory card: Micro SD memory card (flash card) max. 32 GB, optional; Data storage and retrieval: Image and data storage via microSD memory card and external FTP; Maximum encoder frequency: 1 kHz; External illumination control: Via digital output (max. 24 V trigger) or external illumination connection; Ambient data: Electromagnetic compatibility (EMC): EN 61000-6-2:2005-08 / EN 61000-6-4 (2007-01) + A1 (2011); Vibration resistance: EN 60068-2-6:2008-02; Ambient operating temperature: 0 °C ... +50 °C; Storage temperature: –20 °C ... +70 °C; Permissible relative humidity: 90 %, Non-condensing; Classifications: ECl@ss 5.0: 27280103; ECl@ss 5.1.4: 27280103; ECl@ss 6.0: 27280103; ECl@ss 6.2: 27280103; ECl@ss 7.0: 27280103; ECl@ss 8.0: 27280103; ECl@ss 8.1: 27280103; ECl@ss 9.0: 27280103; ECl@ss 10.0: 27280103; ECl@ss 11.0: 27280103; ETIM 5.0: EC002550; ETIM 6.0: EC002550; ETIM 7.0: EC002999; UNSPSC 16.0901: 43211701
