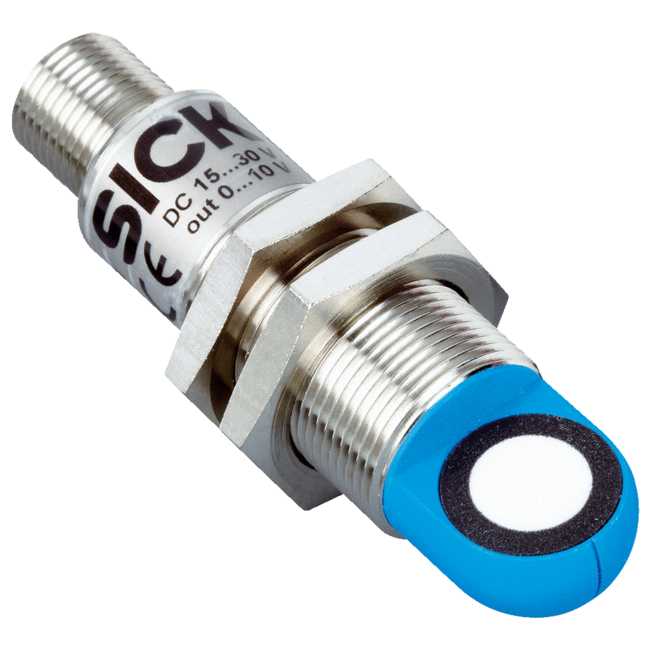

UM18-21712D212 SICK6066167UM1821712D212

Mechanics/electronics: Supply voltage Vs: DC 10 V ... 30 V 1); Power consumption: ≤ 1.2 W 2); Initialization time: < 300 ms; Design: Cylindrical; Housing material: Metal (nickel-plated brass, ultrasonic transducer: polyurethane foam, glass epoxy resin); Thread size: M18 x 1; Connection type: Male connector, M12, 5-pin; Indication: 2 x LED; Weight: 30 g; Sending axis: Angled; Dimensions (W x H x D): 18 mm x 18 mm x 68.7 mm; Enclosure rating: IP65 / IP67; Protection class: III; Performance: Operating range, limiting range: 20 mm ... 150 mm, 250 mm; Target: Natural objects; Resolution: ≥ 0.069 mm; Repeatability: ± 0.15 % 1); Accuracy: ± 1 % 1) 2); Temperature compensation: ✔; Response time: 32 ms 3); Switching frequency: 25 Hz; Output time: 8 ms; Ultrasonic frequency (typical): 380 kHz; Additional function: Adjustable operating modes: Switching point (DtO) / Switching window/Background (ObSB), teach-in of digital output, invertible digital output, teach-in of analog output, Invertable analog output, multifunctional input: external teach / synchronization / multiplexing, synchronization of up to 20 sensors, multiplexing: no cross talk of up to 20 sensors, reset to factory default; Interfaces: IO-Link✔ , IO-Link V1.1FunctionProcess data, parameterization, diagnosis, data storage: IO-Link; Digital outputNumber1 1)TypePush-pull: PNP/NPNMaximum output current IA≤ 100 mA: Digital output; Analog outputNumber1TypeVoltage outputVoltage0 V ... 10 V, ≥ 100,000 ΩResolution12 bit: Analog output; Multifunctional input (MF): 1 x MF; Hysteresis: 2 mm; Ambient data: Ambient temperature operation: –25 °C ... +70 °C; Ambient storage temperature: –40 °C ... +85 °C; Classifications: ECl@ss 5.0: 27270804; ECl@ss 5.1.4: 27270804; ECl@ss 6.0: 27270804; ECl@ss 6.2: 27270804; ECl@ss 7.0: 27270804; ECl@ss 8.0: 27270804; ECl@ss 8.1: 27270804; ECl@ss 9.0: 27270804; ECl@ss 10.0: 27270804; ECl@ss 11.0: 27270804; ETIM 5.0: EC001846; ETIM 6.0: EC001846; ETIM 7.0: EC001846; UNSPSC 16.0901: 41111960
