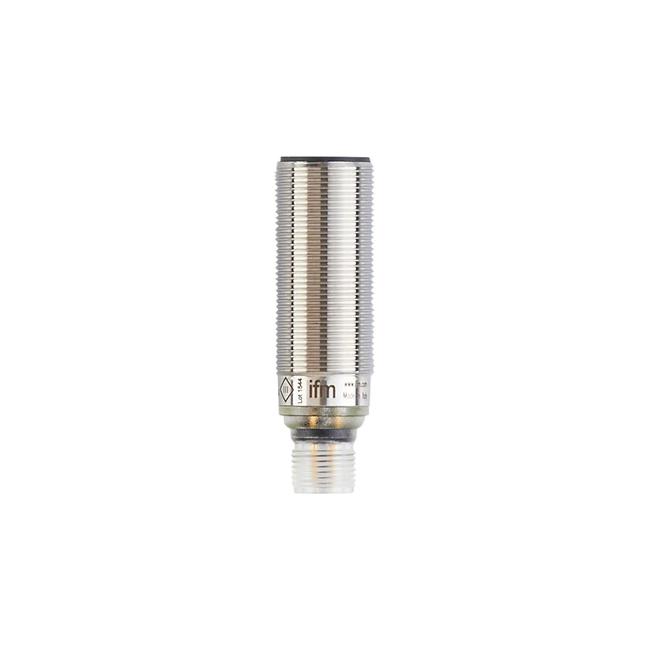

UGT508 ifm ⍾ UGB01200O2OG/US

Ultrasonic sensor; Operating voltage [V] : 10...30 DC; ("supply class 2" to cULus); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : < 0.3; Converter frequency [kHz] : 200; Synchronisation input : no; Multiplex input : no; Total number of outputs : 1; Number of analogue outputs : 1; Analogue voltage output [V] : 0...10; Min. load resistance [Ω] : 3000; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 80...1200; (Target: 200 x 200 mm); Blind zone [mm] : 80; Angle of aperture cylindrical [°] : 14; (±2); Max. deviation from the 90° angle sensor/object [°] : ± 4; Temperature compensation : yes; Hysteresis [%] : < 1; Switch point drift [%] : -2.5...2.5; Linearity error of analogue output [%] : < 1; Notes on the accuracy / deviation : The indicated values are reached after a warm-up time of min. 20 minutes; Resolution [mm] : 2; Ambient temperature [°C] : -20...70; Storage temperature [°C] : -30...80; Housing : threaded type; Thread designation : M18 x 1; Materials : stainless steel (1.4404 / 316L); PA; epoxy glass ceramics; Tightening torque [Nm] : 50; Items supplied : lock nuts: 2, stainless steel

Type

Ultrasonic sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 35 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | echo: 1 x LED, green

Degree of protection

IP 67

Weight

79 g

Dimensions

M18 x 1 / L = 60.5 mm
