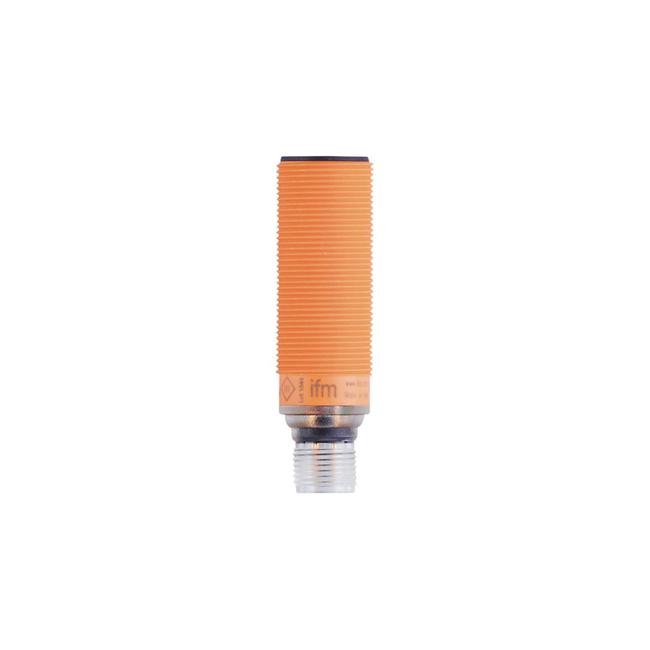

UGT214 ifm ⍾ UGC01200EOKG/IO-Link/US

Ultrasonic sensor; Operating voltage [V] : 10...30 DC; ("supply class 2" to cULus); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : < 0.3; Converter frequency [kHz] : 200; Synchronisation input : no; Multiplex input : no; Total number of outputs : 1; Electrical design : PNP; Number of digital outputs : 1; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2.2; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 3; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 80...1200; (Target: 200 x 200 mm); Blind zone [mm] : 80; Angle of aperture cylindrical [°] : 14; (±2); Max. deviation from the 90° angle sensor/object [°] : ± 4; Temperature compensation : yes; Hysteresis [%] : < 1; Switch point drift [%] : -2...2; Notes on the accuracy / deviation : The indicated values are reached after a warm-up time of min. 20 minutes; Repeatability :

Type

Ultrasonic sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 1

Current consumption

< 35 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | echo: 1 x LED, green

Degree of protection

IP 67

Weight

57 g

Dimensions

M18 x 1 / L = 60.5 mm
