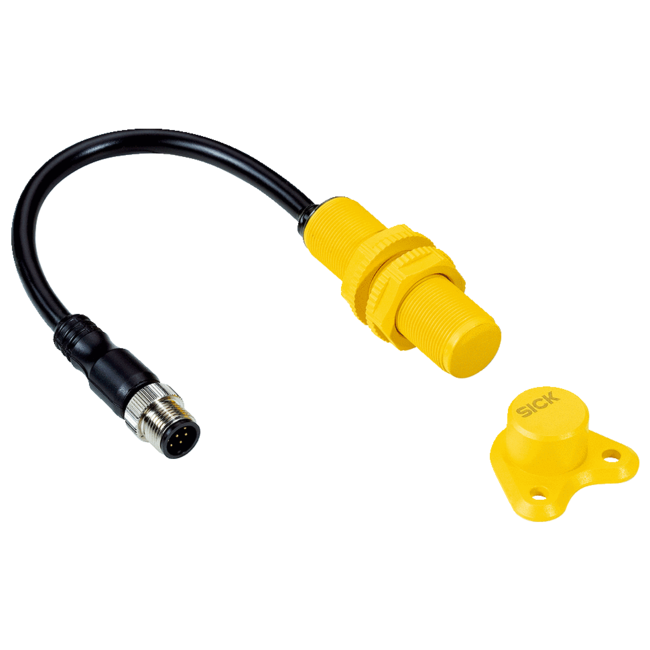

SICK TR4-SAM02C

TR4-SAM02C SICK ⍾ 6052849 ⍾ TR4SAM02C

Features: System part: Sensor and actuator; Sensor principle: Transponder; Number of safe outputs: 2; Safe switch on distance Sao: 15 mm; Safe switch off distance Sar: 25 mm; Active sensor surfaces: 2; Actuation directions: 5; Coding: Universally coded; Safety-related parameters: Safety integrity level: SIL3 (IEC 61508), SILCL3 (EN 62061); Category: Category 4 (EN ISO 13849); Performance level: PL e (EN ISO 13849); PFHD (mean probability of a dangerous failure per hour): 1.119 x 10-9 (EN ISO 13849); TM (mission time): 20 years (EN ISO 13849); Type: Type 4 (EN ISO 14119); Actuator coding level: Low coding level (EN ISO 14119); Classification in compliance with IEC/EN 60947-5-3: PDF-M; Safe state in the event of a fault: At least one safety-related semiconductor output (OSSD) is in the OFF state.; Functions: Safe series connection: With Flexi Loop (with diagnostics); Interfaces: Connection typeCable with plug M12, 5-pinLength of cable0.2 mCable materialPVCLong connecting cable≤ 200 m: Connection type; Status display: ✔; Electrical data: Protection class: III (EN 50178); Classification according to cULus: Class 2; Supply voltage Vs: 24 V DC (20.4 V DC ... 26.4 V DC); Power consumption: 50 mA; Type of output: Semiconductor (OSSD); Output current: ≤ 200 mA; Response time: 60 ms 1); Enable time: 360 ms 2); Risk time: 60 s 3); Switch-on time: 2.5 s 4); Electrical life: 10 x 106 switching cycles; Mechanical data: Design: Cylindrical; Housing diameter (sensor/actuator): M18 / M18; Weight: 62 g; Housing material: Valox® DR48; Ambient data: Enclosure rating: IP69K (IEC 60529)NEMA 3 (NEMA 250)NEMA 4X (NEMA 250)NEMA 12 (NEMA 250)NEMA 13 (NEMA 250); Ambient operating temperature: –10 °C ... +55 °C; Vibration resistance: 10 Hz ... 55 Hz, 3.5 mm (IEC 60068-2-6); Shock resistance: 30 g, 11 ms (EN 60068-2-27); Classifications: ECl@ss 5.0: 27272403; ECl@ss 5.1.4: 27272403; ECl@ss 6.0: 27272403; ECl@ss 6.2: 27272403; ECl@ss 7.0: 27272403; ECl@ss 8.0: 27272403; ECl@ss 8.1: 27272403; ECl@ss 9.0: 27272403; ETIM 5.0: EC001829; ETIM 6.0: EC001829; UNSPSC 16.0901: 39122205
