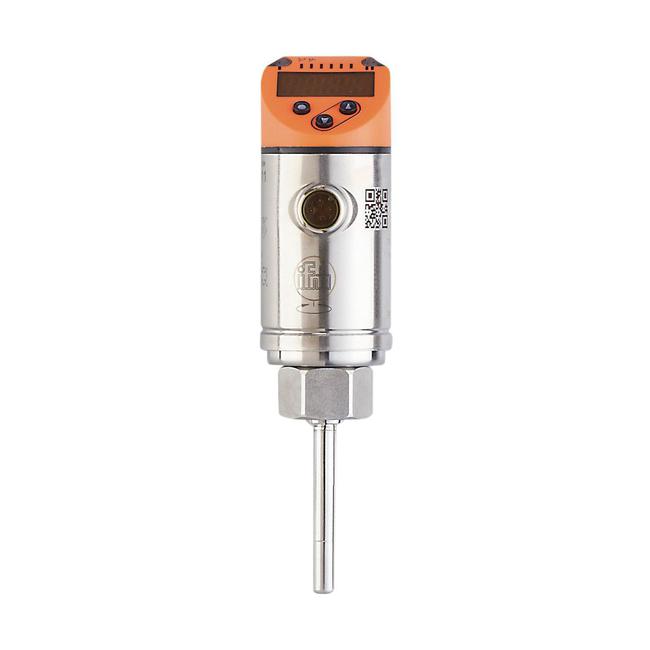

ifm TN7511

TN7511 ifm ⍾ TN-045KCBD18-QFPKG/US/

Temperature sensor with display; Operating voltage [V] : 18...32 DC; ("supply class 2" to cULus); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : 1; Integrated watchdog : yes; Total number of outputs : 2; Output signal : switching signal; IO-Link; (configurable); Electrical design : PNP/NPN; Number of digital outputs : 2; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Probe length L [mm] : 45; Measuring range : -50...150 °C: -58...302 °F; Set point SP : -49.8...150 °C: -57.6...302 °F; Reset point rP : -50...149.8 °C: -58...301.6 °F; In steps of : 0.1 °C: 0.1 °F; Resolution of switching output [K] : 0.1; Resolution of display [K] : 0.1; Switch point accuracy [K] : ± 0,3 + (± 0,1 % MS); Display accuracy [K] : ± 0,3 + (± 0,1 % MS); Temperature coefficient [% of the span / 10 K] : 0,1; (in case of deviation from the reference condition 25 ± 5 °C); Dynamic response T05 / T09 [s] : 1 / 3; (to DIN EN 60751); Parameter setting options : hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; Ambient temperature [°C] : -25...80; Storage temperature [°C] : -40...100; Housing : compact type for adapter; Materials : stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC; Materials (wetted parts) : stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A; Process connection : threaded connection M18 x 1,5 internal thread; Installation length EL [mm] : 45

Connection
Connector: 1 x M12; Contacts: gold-plated
No. of inputs/outputs
Number of digital outputs: 2
Current consumption
< 50 mA
Voltage supply
24 V
Display
Display unit: 2 x LED, green | switching status: LED, yellow | measured values: alphanumeric display, red/green 4-digit
Degree of protection
IP 67
Weight
204 g
Dimensions
Ø 6 mm
