TMS88D-PCI360 SICK ⍾ 1094483 ⍾ TMS88DPCI360

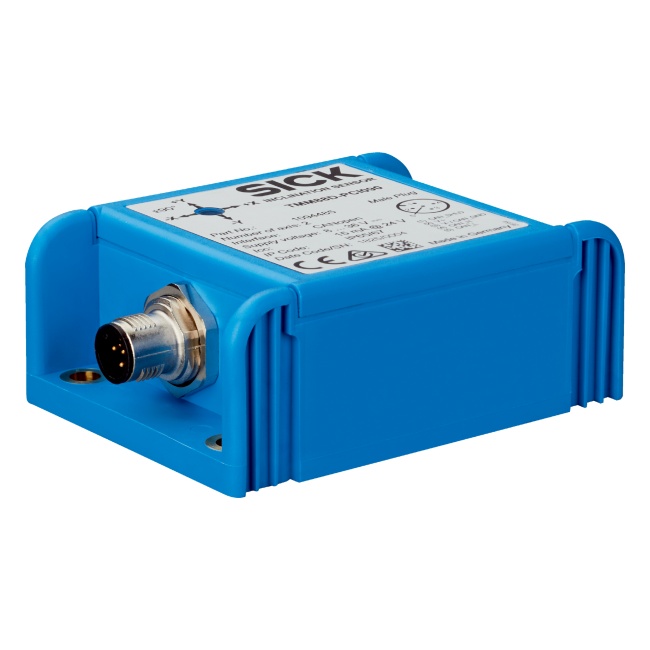

The TMS/TMM88 Dynamic and TMS88D-PCI360 inertial sensor provides single-axis measurement with a 360° range and 0.01° resolution. It features CANopen communication and is programmable via the PGT-12-Pro interface. The sensor's housing is constructed from PBT plastic and utilizes M12, 5-pin connectors for both power and data connections.
- Type
- TMS/TMM88
- Customs tariff number
- 90318020
- Expected origin
- DE
- Weight
- 0.23 kg
 |
TMS88D-PCI360 TMS/TMM88 Dynamic Inclination Sensors Data Sheet (en) Size: 814 KB |
Download |
