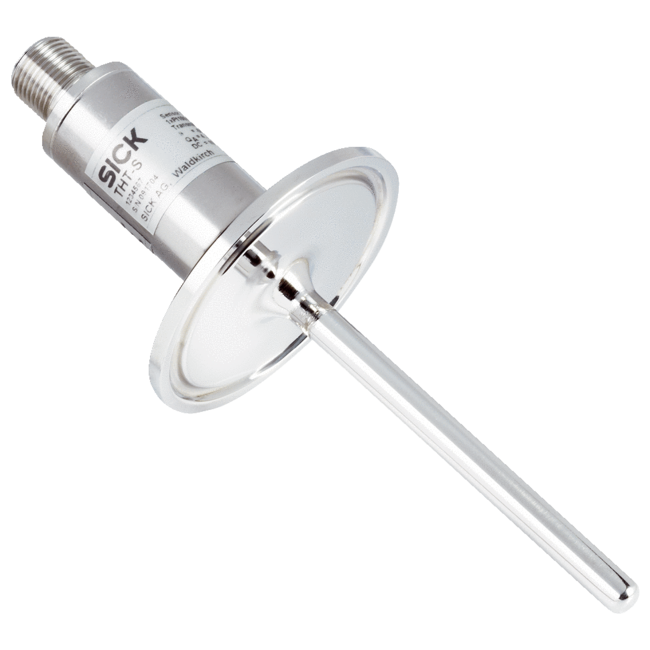

SICK THTS-1PBD20506MZ

THTS-1PBD20506MZ SICK ⍾ 6047692 ⍾ THTS1PBD20506MZ

Features: Measuring range: –50 °C +250 °C; Sensor element: Pt100, Pt1000 (for 4 mA ... 20 mA version); Output signal: Pt100, 4-wire; Mechanics/electronics: Process connection: Clamp (DIN 32676) DN 10, DN 15, DN 20; Insertion length/diameter of probe: 50 mm / 6 mm; Wetted parts: Stainless steel 1.4435 / 316L, Ra ≤ 0.8 µm; Pressure resistance: Max. 16 bar at room temperature; Housing material: Stainless steel (CrNi); Electrical connection: Round connector M12 x 1, 4-pin, IP 67and IP69 1); Measuring current: 0.1 mA ... 1 mA; Electrical safety: Protection class: III, dielectric strength: 500 V AC; Protection class III: ✔; RoHS certificate: ✔; Initialization time: Max. 4 s; Performance: Accuracy of sensor element: Class A according to IEC 60751 1); Transmitter accuracy: ± 0,25 K; Transmitter linearity: ≤ ± 0.1 % of span; Response time: t50 ≤ 3,3 st90 ≤ 9,7 s 2); Ambient data: Ambient temperature: –40 °C ... +85 °C; Storage and transport temperature: –40 °C ... +85 °C; Shock resistance: 50 g, 6ms (according to IEC 60068-2-27); Relative humidity: 100 % 1); Classifications: ECl@ss 5.0: 27200208; ECl@ss 5.1.4: 27200208; ECl@ss 6.0: 27200208; ECl@ss 6.2: 27200208; ECl@ss 7.0: 27200208; ECl@ss 8.0: 27200208; ECl@ss 8.1: 27200208; ECl@ss 9.0: 27200208; ECl@ss 10.0: 27200208; ECl@ss 11.0: 27200208; ETIM 5.0: EC002994; ETIM 6.0: EC002994; ETIM 7.0: EC002994; UNSPSC 16.0901: 41112211
