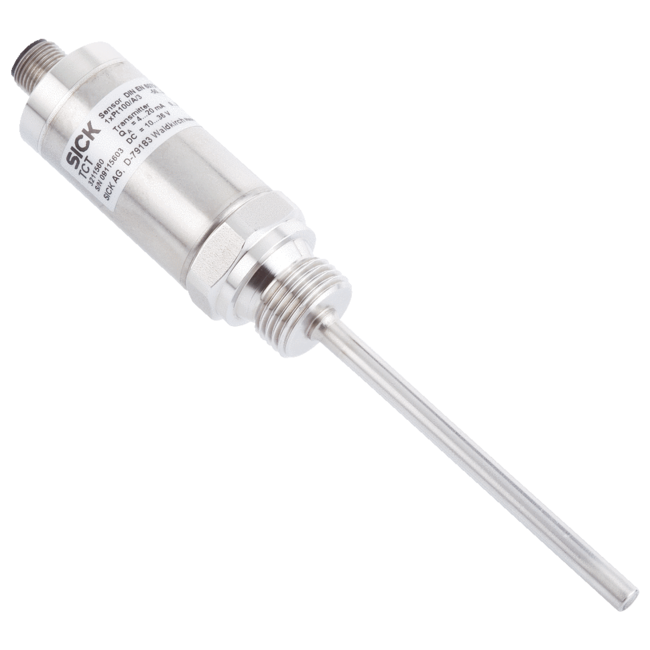

TCT-1PBZZ0503MZ SICK6048087TCT1PBZZ0503MZ

Features: Measuring range: –50 °C +250 °C; Sensor element: Pt100; Output signal: Pt100, 4-wire; Mechanics/electronics: Process connection: Without process connection; Insertion length/diameter of probe: 50 mm / 3 mm; Wetted parts: Stainless steel 1.4571; Housing material: Stainless steel 1.4571; Electrical connection: Round connector M12 x 1, 4-pin, IP67 1); Measuring current: 0.3 mA ... 1 mA; Electrical safety: Protection class: III, dielectric strength: 500 V; Protection class III: ✔; RoHS certificate: ✔; Weight: Ca. 145 g (depending on configuration); Initialization time: < 10 ms; Performance: Accuracy of sensor element: Class A according to IEC 60751; Transmitter accuracy: ≤ ± 1,0 % of span; Transmitter linearity: ≤ 0.1 % of span; Response time: T50: ≤ 2.8 s 1)t90 ≤ 9,1 s 1); Ambient data: Ambient temperature: –40 °C ... +125 °C; Storage and transport temperature: –40 °C ... +85 °C; Shock resistance according to IEC 60751: 500 g; Vibration resistance according to IEC 60751: 3 g; Classifications: ECl@ss 5.0: 27200208; ECl@ss 5.1.4: 27200208; ECl@ss 6.0: 27200208; ECl@ss 6.2: 27200208; ECl@ss 7.0: 27200208; ECl@ss 8.0: 27200208; ECl@ss 8.1: 27200208; ECl@ss 9.0: 27200208; ECl@ss 10.0: 27200208; ECl@ss 11.0: 27200208; ETIM 5.0: EC002994; ETIM 6.0: EC002994; ETIM 7.0: EC002994; UNSPSC 16.0901: 41112211
