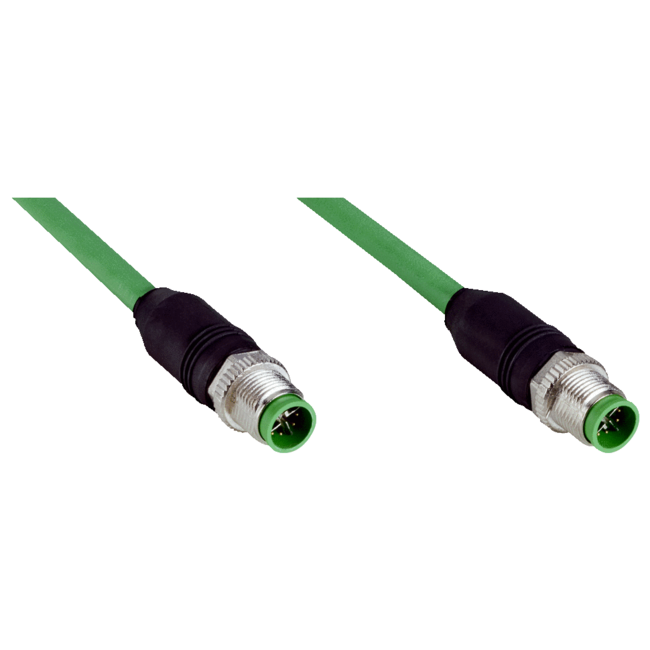

SSL-1208-G10MACE SICK ⍾ 2095102 ⍾ SSL1208G10MACE

Technical specifications: Accessory group: Plug connectors and cables; Accessory family: Connection cables; Connection type head A: Male connector, M12, 8-pin, X-coded; Connection type head B: Male connector, M12, 8-pin, X-coded; Locking plug connector: Quick screw connection; Cable: 10 m, 8-wire, CAT6A, PUR, halogen-free; Jacket material: PUR, halogen-free; Jacket color: Green; Cable diameter: 6.4 mm; Conductor cross-section: 4 x 2 x 0.14 mm²; Shielding: Shielded; Reference voltage: ≤ 60 V; Current loading: 0.5 A; Signal type: Gigabit Ethernet; Transmission characteristics: CAT6A; Data transmission rate: ≤ 10 Gbit/s; Ambient operating temperatureHead–25 °C ... +85 °C: Ambient operating temperature; Classifications: ECl@ss 5.0: 19030312; ECl@ss 5.1.4: 19030312; ECl@ss 6.0: 27060304; ECl@ss 6.2: 27060304; ECl@ss 7.0: 27060304; ECl@ss 8.0: 27060304; ECl@ss 8.1: 27060304; ECl@ss 9.0: 27060304; ECl@ss 10.0: 27060304; ECl@ss 11.0: 27060304; ETIM 5.0: EC000830; ETIM 6.0: EC000830; ETIM 7.0: EC003249; UNSPSC 16.0901: 26121604
