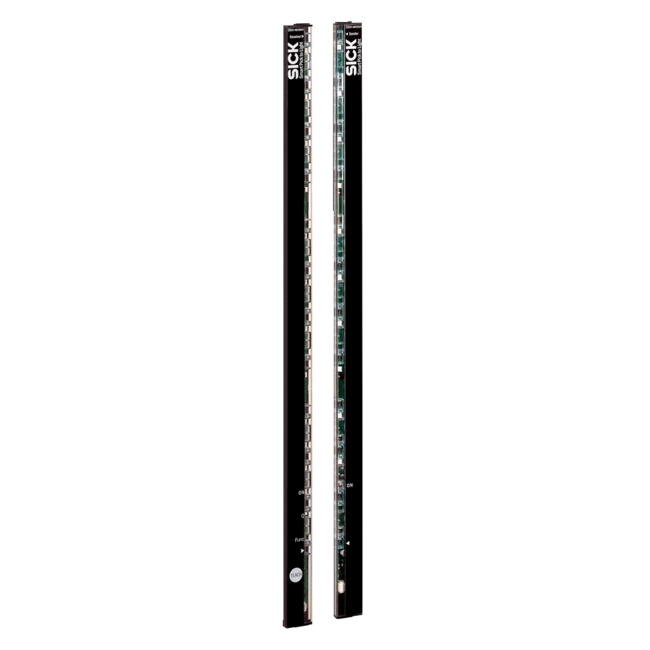

SPL-S280PTC1W04 SICK1213545SPLS280PTC1W04

Features: Sensor principle: Sender/receiver; Minimum detectable object (MDO): Parallel beam, 45 mm; Beam separation: 40 mm; Optical light exit: Slim; Number of beams: 8; Detection height: 280 mm; Configuration: None; Cross beam/parallel beam: Parallel beam active; Output 1: Output 1 active, if light beam interrupted; Automatic teach: Automatic teach active; Alignment aid: Without alignment aid; Muting function: Muting function deactivated; Mechanics/electronics: Light source: Infrared light; Wave length: 950 nm; Supply voltage Vs: DC24 V, ± 20 %; Power consumption sender: ≤ 60 mA 1); Power consumption receiver: ≤ 50 mA; Output current Imax.: 100 mA; Output load capacitive: 100 nF; Output load inductive: 1 H; Initialization time: 1 s; Switching output: PNP; Inputs: Teach-in input; Dimensions (W x H x D): 25 mm x 352.4 mm x 8.2 mm; Connection type: Cable with M12 male connector, 4-pin; Housing material: PMMA; Indication: LED; Synchronization: Optical; Enclosure rating: IP65; Circuit protection: UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression; Protection class: III; Weight: 40 g; Pulse frequency: 250 kHz; Aluminum stabilizer: Without stabilizer; Performance: Maximum range: 3 m 1); Minimum range: Parallel beam: ≥ 0 m; Operating range: 1.5 m; Response time: Parallel beam coded version, 38 ms 2); Ambient data: EMC: EN 60947-5-2; Ambient operating temperature: –25 °C +55 °C; Ambient storage temperature: –25 °C +70 °C; Ambient light immunity: Direct: 100,000 lx 1)Indirect: 150,000 lx; Vibration resistance: 5 g, 10 Hz ... 55 Hz (IEC 68-2-6); Shock load: 10 g / DIN EN 60068-2-29 / 16 ms; Classifications: ECl@ss 5.0: 27270910; ECl@ss 5.1.4: 27270910; ECl@ss 6.0: 27270910; ECl@ss 6.2: 27270910; ECl@ss 7.0: 27270910; ECl@ss 8.0: 27270910; ECl@ss 8.1: 27270910; ECl@ss 9.0: 27270910; ECl@ss 10.0: 27270910; ECl@ss 11.0: 27270910; ETIM 5.0: EC002549; ETIM 6.0: EC002549; ETIM 7.0: EC002549; UNSPSC 16.0901: 39121528
