SLSE14-600Q5 Turck ⍾ 3071215 ⍾ SLSE14600Q5

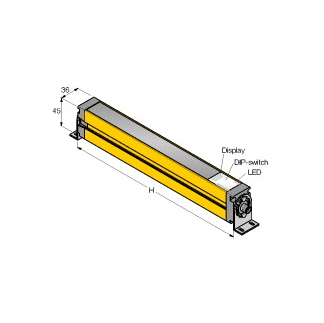

14/30 Series Emitters and Receivers; SLSE14-600 Q5 EZ-SCREEN Emitter With Test Input ; Response Time: (Tr) 23 ms; Number of Beams: 80; Quick-Disconnect Connector; Primary Housing Material : Aluminum; Safety Level : Type 4; Effective Aperture Angle : Type 4 Per IEC 61496-2; Connector Type : M12; Defined Area Height (mm) : 600; Dimensions WxD (mm) : 36 x 45.2; Overall Length (mm) : 671; Housing Finish : Yellow Polyester; Number of Pins (Receiver/Emitter) : 5; Operating Distance (m) : 0.1 - 6; Operating Voltage : 24 V dc +/- 15%; Operating Temperature : 0 to +55 deg. C; RH 95%; PL Rating : Ple; Recovery Time : 33-220 / 109-800; Resolution (mm) : 14; SIL Rating : SIL3; CL3; Electrical Safety Class : III; Scan Code : Selectable; Shock : 10g at 16ms (6000 cycles); Short Protection : Yes; System Type : Emitter; Vibration : 10-55 Hz at 0.35 mm; Housing Material : Aluminum; Zinc; Acrylic; Supply Current : 100 mA max.

Type

Light screen

Range

0.1 to 6 m (4 INCH to 20FT)

Height

600 mm (23.6 INCH)
