SLPE25-270P8 Turck ⍾ 3083564 ⍾ SLPE25270P8

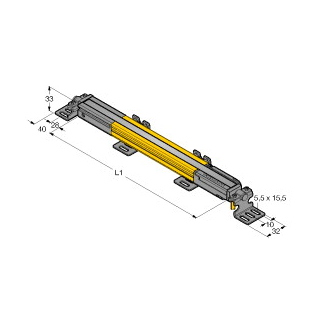

LP Series Emitters and Receivers; SLPE25-270P8 EZ-SCREEN Low Profile Emitter Resolution: 25 mm; Response (Tr): 8 ms; Beams: 14; Connection: 300 mm pigtail; 8-pin M12 QD; low-profile : Yes; Primary Housing Material : Aluminum; Safety Level : Type 4; Effective Aperture Angle : Type 4 Per IEC 61496-2; Connector Type : M12 Pigtail (Yellow); Defined Area Height (mm) : 270; Dimensions WxD (mm) : 28 x 26; Overall Length (mm) : 270; Housing Finish : Yellow Polyester; Number of Pins (Receiver/Emitter) : 8; Operating Distance (m) : 0.1 - 7; Operating Voltage : 24 V dc +/- 15%; Operating Temperature : 0 to +55 deg. C; RH 95%; PL Rating : Ple; Recovery Time : 25-152 / 81-495; Resolution (mm) : 25; Reduced Resolution : Yes; Response Time : 8; SIL Rating : SIL3; CL3; Electrical Safety Class : III; Scan Code : Selectable; Shock : 10g at 16ms (6000 cycles); Short Protection : Yes; System Type : Emitter; Vibration : 10-55 Hz at 0.35 mm; Fault Output : Yes; Housing Material : Aluminum; Zinc; Acrylic; Supply Current : 60 mA max.; Test Input : Yes; Feature: End-to-End Sensing : Yes

Type

Light screen

Range

0.1 to 7 m (4in. to 23ft.)

Height

270 mm (10.6in.)
