SLPCP14-1110P88 Turck ⍾ 3083753 ⍾ SLPCP141110P88

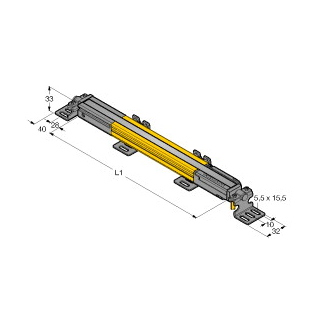

LP Series Full Feature Compact Type 4 Safety Light Curtains; SLPCP14-1110P88 EZ-SCREEN Low Profile Cascade Pair Resolution: 14 mm; Response (Tr): 28.5 ms; Beams: 111; Connection: 300 mm pigtail; 8-pin M12 QD; low-profile : Yes; Primary Housing Material : Aluminum; Safety Level : Type 4; Effective Aperture Angle : Type 4 Per IEC 61496-2; Connector Type : M12 Pigtail (Yellow); Defined Area Height (mm) : 1110; Dimensions WxD (mm) : 28 x 26; Overall Length (mm) : 1110; External Monitoring Device : 1 or 2 Channel; Fixed Blanking : Yes; Housing Finish : Yellow Polyester; Number of Pins (Receiver/Emitter) : 8; Operating Distance (m) : 0.1 - 7; Operating Voltage : 24 V dc +/- 15%; Operating Temperature : 0 to +55 deg. C; RH 95%; PL Rating : Ple; Recovery Time : 33-220 / 109-800; Resolution (mm) : 14; Reduced Resolution : Yes; Response Time : 28.5; SIL Rating : SIL3; CL3; Electrical Safety Class : III; Scan Code : Selectable; Shock : 10g at 16ms (6000 cycles); Short Protection : Yes; System Type : Emitter/Receiver Pair; Vibration : 10-55 Hz at 0.35 mm; Auxiliary Output : Yes; Fault Output : Yes; Housing Material : Aluminum; Zinc; Acrylic; OSSD Rating : 24 V dc at 0.5 A each; Supply Current : 210 mA max.; Trip/Latch Output : Selectable; Test Input : Yes; Feature: Cascade : Yes; Feature: End-to-End Sensing : Yes

Type

Light screen

Range

0.1 to 7 m (4in. to 23ft.)

Height

1110 mm (43.7in.)
