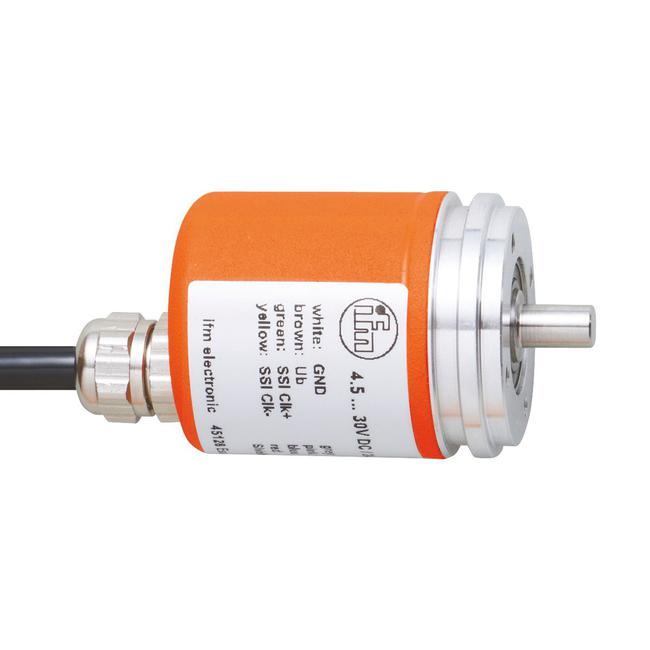

RM8001 ifm ⍾ RMS4096-S24/L2A

Absolute multiturn encoder with solid shaft; Operating voltage [V] : 4.5...30 DC; Inputs : reversal of direction of rotation; reset to zero; Code : Gray code; (increasing code values when turned clockwise (seen on the shaft)); Code signal : Clock input; TTL-compatible signals; clock and clock (inv.) from drivers to RS 422; data output; synchronous serial; TTL-compatible signals, data, and data (inv.); Resolution : 4096 resolution; 8192 revolutions; 25 bit; Communication interface : SSI data interface; Ambient temperature [°C] : -40...85; Max. relative air humidity [%] : 98; Materials : flange: aluminium; housing: steel powder-coated; Max. revolution, mechanical [U/min] : 12000; Max. starting torque [Nm] : 3; Reference temperature torque [°C] : 25; Shaft design : solid shaft; Shaft diameter [mm] : 6; Shaft material : steel; Max. shaft load axial (at the shaft end) [N] : 40; Max. shaft load radial (at the shaft end) [N] : 110; Cable: 2 m, PUR; Maximum cable length: 100 m; axial

Type

Encoders

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of digital outputs: 1; Number of analogue outputs: 1

Current consumption

< 30 mA

Voltage supply

24 V

Display

Preoperational Mode: LED, green flashing | Operational Mode: LED, green | error message: LED, red flashing

Degree of protection

IP 65

Weight

323 g

Dimensions

Ø 36.5 / L = 69.5 mm
