REI-E-113T10S-2B360-H1181 Turck ⍾ 100011564 ⍾ REIE113T10S2B360H1181

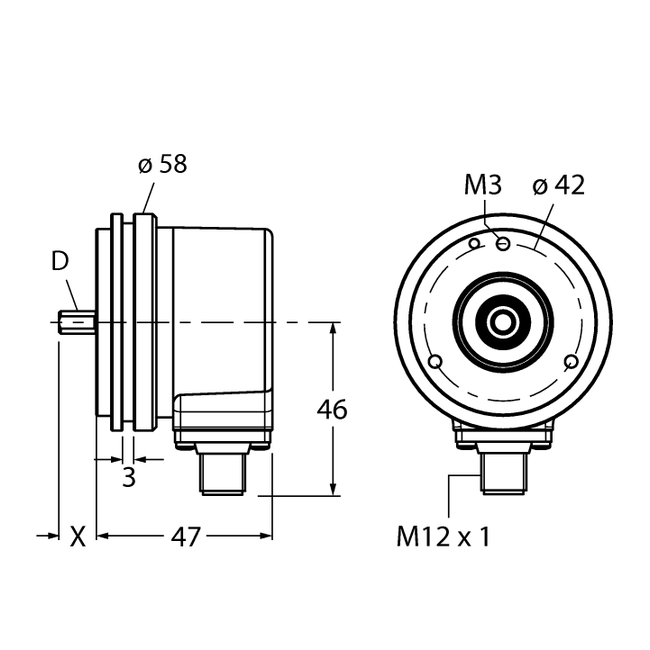

Incremental Encoder; Synchro flange, Ø 58 mm; Solid shaft, Ø 10 mm × 20 mm; Optical measuring principle; Shaft material: stainless steel; Protection class IP64 on housing and shaft side; ‐20…+70 °C; Max. 4500 rpm (continuous operation 3000 rpm); 10…30 VDC; Male connector, M12 x 1 , 8-pole; Push-pull, with inverted signals; Pulse frequency max. 300 kHz; 360 pulses per revolution
