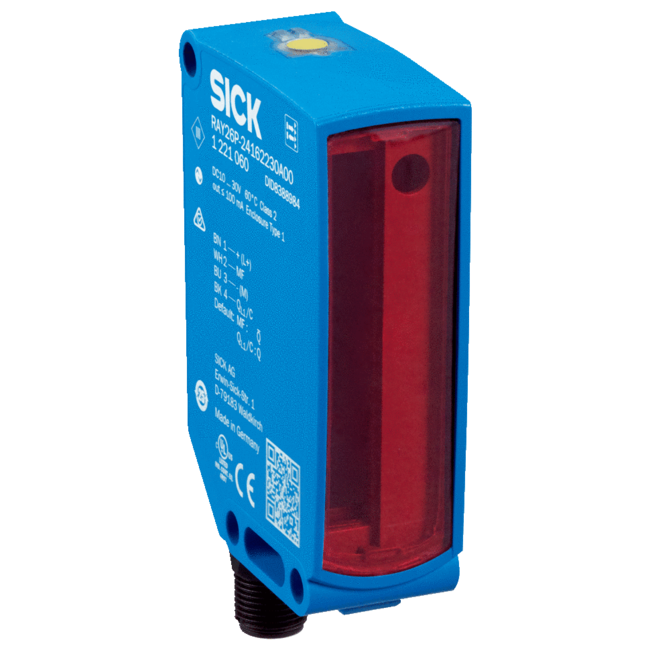

RAY26P-34162130A00 SICK ⍾ 1106994 ⍾ RAY26P34162130A00

Features: Sensor/ detection principle: Photoelectric retro-reflective sensor, autocollimationReflex Array; Dimensions (W x H x D): 24.6 mm x 82.5 mm x 53.3 mm; Housing design (light emission): Rectangular; Minimum object size: 1 mm, position-independent detection within the light array; Detection height: 20 mm; Sensing range max.: 0 m ... 1.5 m 1) 2); Distance of the sensor to reflector: ≥ 0 m; Type of light: Visible red light; Light source: PinPoint LED 3); Light spot size (distance): 24 mm x 9 mm (1 m); Wave length: 635 nm; Adjustment: BluePilot: Teach-inIO-Link; Pin 2 configuration: External Input (test), Teach-in, switching signal; AutoAdapt: ✔; Special applications: Detecting objects with position tolerances, Detecting perforated objects, Detecting uneven, shiny objects, Detecting transparent objects, Detecting flat objects; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp; Current consumption: 25 mA 2)40 mA 3); Switching output: PUSH/PULLPNPNPN; Output: QL1 / C: Switching output or IO-Link mode; Output function: Factory setting: Pin 2 / white: NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black: NPN normally open (dark switching), PNP normally closed (light switching); Switching mode: Light/dark switching; Switching mode selector: Via IO-Link; Signal voltage PNP HIGH/LOW: Approx. VS – 2.5 V / 0 V; Signal voltage NPN HIGH/LOW: Approx. VS / < 2.5 V; Output current Imax.: ≤ 100 mA; Response time: ≤ 3 ms 4); Switching frequency: 170 Hz 5); Connection type: Cable with M12 male connector, 4-pin, 270 mm 6); Cable material: PVC; Circuit protection: A 7)B 8)C 9)D 10); Protection class: III; Weight: 80 g; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP66IP67; Ambient operating temperature: –40 °C ... +60 °C 11) 12); Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493 & NRKH7.E181493; Safety-related parameters: MTTFD: 709 years; DCavg: 0%; Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 2.3 ms; Process data length: 16 Bit; Process data structure: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = empty; VendorID: 26; DeviceID HEX: 0x80025A; DeviceID DEC: 8389210; Smart Task: Smart Task name: Base logics; Logic function: DirectANDORWindowHysteresis; Timer function: DeactivatedOn delayOff delayON and OFF delayImpulse (one shot); Inverter: Yes; Switching frequency: SIO Direct: 170 Hz 1)SIO Logic: 170 Hz 2)IOL: 170 Hz 3); Response time: SIO Direct: 3 ms 1)SIO Logic: 3 ms 2)IOL: 3 ms 3); Repeatability: SIO Direct: 1,5 ms 1)SIO Logic: 1,5 ms 2)IOL: 1,5 ms 3); Switching signal QL1: Switching output; Switching signal QL2: Switching output; Classifications: ECl@ss 5.0: 27270902; ECl@ss 5.1.4: 27270902; ECl@ss 6.0: 27270902; ECl@ss 6.2: 27270902; ECl@ss 7.0: 27270902; ECl@ss 8.0: 27270902; ECl@ss 8.1: 27270902; ECl@ss 9.0: 27270902; ECl@ss 10.0: 27270902; ECl@ss 11.0: 27270902; ETIM 5.0: EC002717; ETIM 6.0: EC002717; ETIM 7.0: EC002717; UNSPSC 16.0901: 39121528
