PL240DG-H SICK ⍾ 1022926 ⍾ PL240DGH

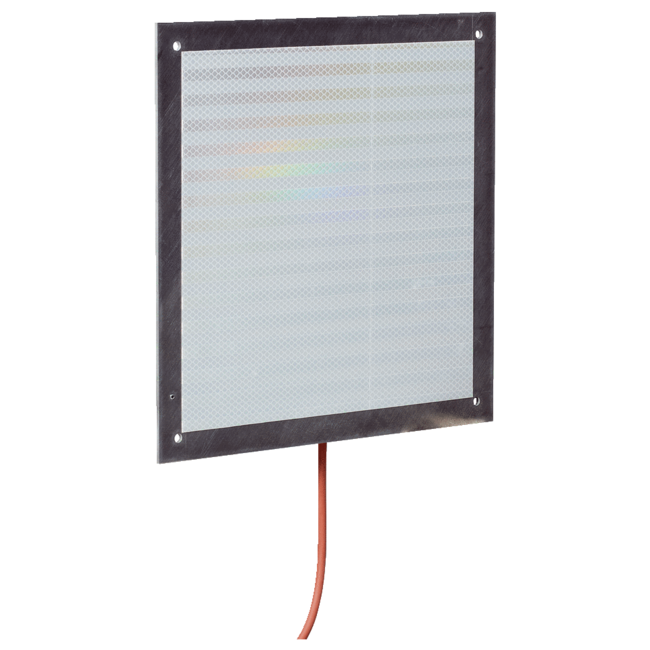

Technical specifications: Accessory group: Reflectors; Accessory family: Angular; Description: Reflector plate, “Diamond Grade” reflective tape, baseplate: 330 mm x 330 mm, heated, external fuse protection: 6 A (provided by customer); Mounting system type: Screw-on, 4 hole mounting; Ambient operating temperature: –40 °C ... +55 °C; Ambient storage temperature: –40 °C ... +55 °C; Reflective area: 280 mm x 280 mm; Material: Base plate: Aluminum (anodised); Supply voltage: 90 V AC ... 280 V AC; Power consumption: 185 W; Connections: 2 m silicone cable, 3 x 0.75 mm2, flexible cable,open end with ferrules, minimum bend radius: 51 mm at room temperature; Enclosure rating: IPx4 (EN 60529); Protection class: I; Weight: 1.98 kg; Classifications: ECl@ss 5.0: 27279203; ECl@ss 5.1.4: 27279203; ECl@ss 6.0: 27279203; ECl@ss 6.2: 27279203; ECl@ss 7.0: 27279203; ECl@ss 8.0: 27279203; ECl@ss 8.1: 27279203; ECl@ss 9.0: 27273601; ECl@ss 10.0: 27273601; ECl@ss 11.0: 27273601; ETIM 5.0: EC002467; ETIM 6.0: EC002467; UNSPSC 16.0901: 39111827

Type

Accessories
