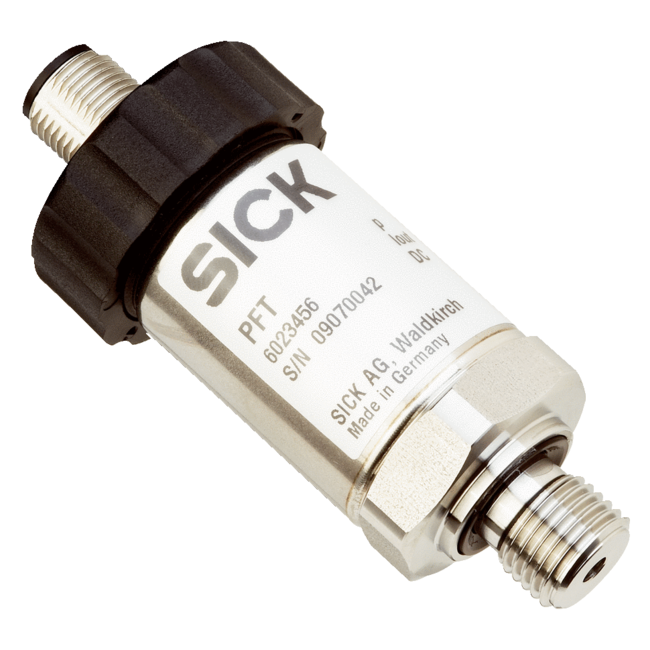

PFT-SCB4X0SG1SSAAMSSZ SICK ⍾ 6050345 ⍾ PFTSCB4X0SG1SSAAMSSZ

Features: Medium: Liquid, gaseous; Pressure type: Compound pressure; Pressure unit: bar; Measuring range: –1 bar ... 3 bar; Process temperature: –30 °C ... +100 °C; Output signal: 4 mA ... 20 mA, 2-wire; Specialty: Without; Mechanics/electronics: Process connection: G ¼ A according to DIN 3852-E; Wetted parts: Standard memrane: Stainless steel 1.4571, stainless steel 1.4534 for measuring ranges > 25 bar; Internal transmission fluid: Synthetic oil (Not available for version with standard membrane for pressure ranges > 25 bar); Pressure port: Standard; Housing material: Stainless steel 1.4571; Connection type: Round connector M12 x 1, 4-pin, IP67; Supply voltage: 10 V DC ... 30 V DC14 V DC ... 30 V DC with output signal 0 V ... 10 V; Electrical safety: Overvoltage protection: 36 V DCShort-circuit protection: QA towards MReverse polarity protection: L+ to MProtection class: III; Dielectric strength: 500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even in the event of a fault); CE-conformity: Pressure equipment directive: 2014/68/EU, EMC directive: 2004/108/EC, EN 61326-2-3; Weight sensor: Approx. 200 g; Seal: Without seal; Enclosure rating: IP67; Protection class III: ✔; Performance: Non-linearity: ≤ ± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2; Accuracy: ≤ ± 0.5 % of the span; Non-repeatability: ≤ ± 0.1 % of the span; Response time (10 % ... 90 %): ≤ 1 ms ≤ 10 ms at medium temperatures below < –30°C for pressure ranges up to 25 bar or with flush-mounted membrane; Long-term drift/one-year stability : ≤ ± 0.2 % of span (at reference conditions); Temperature coefficient in rated temperature range: Mean TC of zero: ≤ 0.2 % of span / 10 K (< 0.4 % for pressure ranges ≤ 0.25 bar), Mean TC of span ≤ 0.2 % of span / 10 K; Rated temperature range: 0 °C ... +80 °C; Service life: Minimum 10 Mio. life cycles; Ambient data: Ambient temperature: –20 °C ... +80 °C; Storage temperature: –40 °C ... +100 °C, with flush-mounted membrane and cooling element –20 °C ... +100 °C; Shock load: 1000 g according to IEC 60068-2-27 (mechanical shock)400 g according to IEC 60068-2-27 (mechanical shock) for version with integrated cooling element; Vibration load: 20 g according to IEC 60068-2-6 (vibration under resonance)10 g according to IEC 60068-2-6 (vibration undencr resonae) for version with integrated cooling element; Classifications: ECl@ss 5.0: 27200614; ECl@ss 5.1.4: 27200614; ECl@ss 6.0: 27200614; ECl@ss 6.2: 27200614; ECl@ss 7.0: 27200614; ECl@ss 8.0: 27200614; ECl@ss 8.1: 27200614; ECl@ss 9.0: 27200614; ECl@ss 10.0: 27200614; ECl@ss 11.0: 27200614; ETIM 5.0: EC011478; ETIM 6.0: EC011478; ETIM 7.0: EC011478; UNSPSC 16.0901: 41112410
