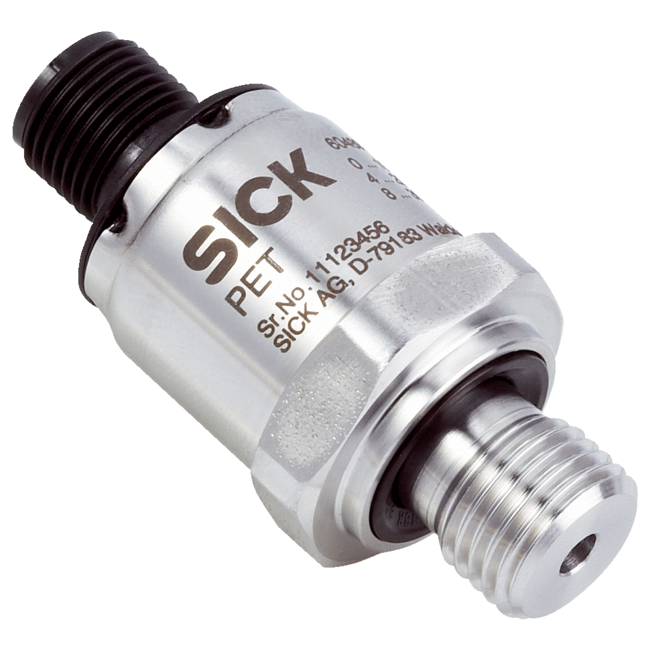

PET-1RP1K0N10SXMA SICK6072425PET1RP1K0N10SXMA

Features: Pressure type: Gauge pressure; Measuring range: 0 psi ... 1,000 psi; Process temperature: –30 °C ... +100 °C; Output signal: 0.5 V ... 4.5 V, 3-conductor; Pieces per package: 50 pieces; Mechanics/electronics: Process connection: ¼'' NPT; Seal: Without seal; Wetted parts: Stainless steel, stainless steel 13-8 PH; Pressure port: 3.5 mm Standard; Housing material: Stainless steel 316L, PBT GF30; Enclosure rating: IP67, for round connector (according to IEC 60529) 1); Connection type: M12 round connector x 1, 4-pin; Supply voltage: 8 V DC ... 30 V DC 2); Maximum ohmic load RA: > QA, max / 1 mA [ohm] for current output signal; Maximum power consumption: 5 mA; Initialization time: 15 ms; Protection class: III; Isolation voltage: 750 V DC; Overvoltage protection: 36 V DC; Short-circuit protection: Output QA towards M; Reverse polarity protection: L+ towards M; CE-conformity: 2004/108/EC, EN 61326-1 emission (group 1, class B) and interference immunity (industrial application) and pressure equipment directive 97/23/EC; RoHS certificate: ✔; Service life: Minimum 100 Mio. life cycles; Performance: Non-linearity: ≤ ± 0.5 % of span (best fit straight line, BFSL); Accuracy: ≤ ± 1.2 % of span (at room temperature); Response time: < 2 ms; Measurement deviation of zero signal: ≤ ± 0.5 % of the span; Temperature error: ≤ ± 1.5 % of the span; Long-term drift/one-year stability : ≤ ± 0.3 % of span (per year); Rated temperature range: 0 °C ... +80 °C; Reference conditions: According to IEC 61298-1; Ambient data: Ambient temperature operation: –30 °C ... +100 °C; Storage temperature: –30 °C ... +100 °C; Shock load: 40 g (6 ms) according to IEC 60068-2-27 (mechanical shock); Vibration load: 20 g (20 Hz ... 2000 Hz, 120 min) according to IEC 60068-2-6 (vibration at resonance); Classifications: ECl@ss 5.0: 27200614; ECl@ss 5.1.4: 27200614; ECl@ss 6.0: 27200614; ECl@ss 6.2: 27200614; ECl@ss 7.0: 27200614; ECl@ss 8.0: 27200614; ECl@ss 8.1: 27200614; ECl@ss 9.0: 27200614; ECl@ss 10.0: 27200614; ECl@ss 11.0: 27200614; ETIM 5.0: EC011478; ETIM 6.0: EC011478; ETIM 7.0: EC011478; UNSPSC 16.0901: 41112410
