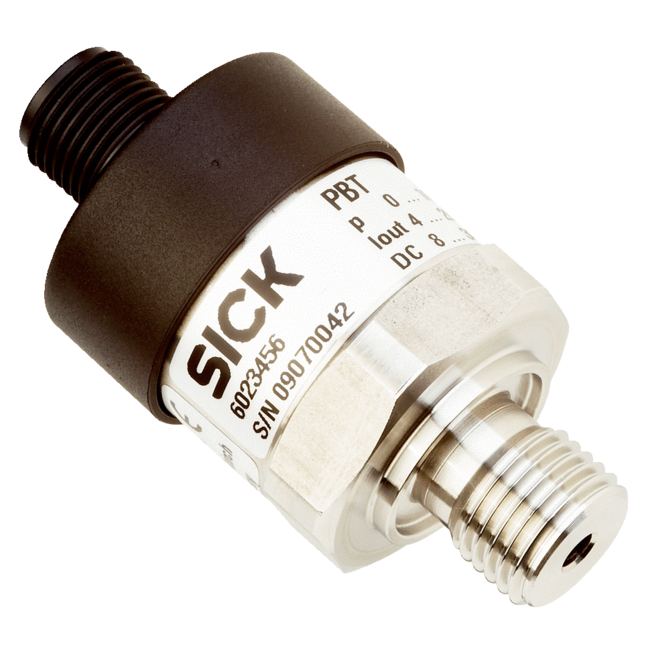

PBT-RB4X0SGTSSNV2C0Z SICK6051810PBTRB4X0SGTSSNV2C0Z

Features: Medium: Liquid, gaseous; Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar ... 4 bar; Process temperature: 0 °C ... +80 °C; Output signal: 0 V ... 10 V, 3-wire; Specialty: Without; Mechanics/electronics: Process connection: G ½ A according to DIN 3852-E; Wetted parts: Pressure Connection: stainless steel 316LPressure sensor: stainless steel 316L (for measurement ranges from 0 bar ... 10 bar rel stainless steel 13-8 PH); Internal transmission fluid: Silicone oil (only with pressure ranges < 0 bar ... 10 bar and ≤ 0 bar abs ... 25 bar abs); Pressure port: Standard; Housing material: Stainless steel; Connection type: Flying leads, 2 m, IP 67; Supply voltage: 8 V DC ... 30 V DC with output signal 4 mA ... 20 mA and 0 V ... 5 V14 V DC ... 30 V DC with output signal 0 V ... 10 V14 V DC ... 30 V DC 1); Power consumption: Signal current (max. 25 mA) for current outputMax. 8 mA for voltage output signal; Electrical safety: Overvoltage protection: 32 V DC, 36 V DC with 4 mA ... 20 mAShort-circuit protection: QA towards MReverse polarity protection: L+ to MProtection class: III; Isolation voltage: 500 V DC; CE-conformity: Pressure equipment directive: 2014/68/EU, EMC directive: 2014/30/EU, EN 61 326-2-3; Weight sensor: Approx. 80 g; Seal: NBR; Enclosure rating: IP67; Protection class III: ✔; Reference conditions: Reference conditions: According to IEC 61298-1; MTTF: 1,176 years; Performance: Non-linearity: ≤ ± 0.5 %, (Best Fit Straight Line, BFSL) according to IEC 61298-2; Accuracy: ≤ ± 1 % of the span; Adjustment accuracy of zero signal: ≤ 0.5 % of span typ., ≤ 0.8 % of span max. (with non-linerarity 0.5 %); Hysteresis: ≤ 0.16 % of the span; Non-repeatability: ≤ 0.1 % of the span; Response time: < 4 ms; Signal noise: ≤ 0.3 % of the span; Long-term drift/one-year stability : ≤ 0.1 % of span to IEC 61298-2; Rated temperature range: 0 °C ... +80 °C; Service life: Minimum 100 Mio. life cycles; Ambient data: Ambient temperature: 0 °C ... +80 °C; Storage temperature: –40 °C ... +70 °C; Relative humidity: 45 % ... 75 %; Shock load: 500 g according to IEC 60068-2-27 (mechanical shock); Vibration load: 10 g according to IEC 60068-2-6 (vibration under resonance)20 g optional; Classifications: ECl@ss 5.0: 27200614; ECl@ss 5.1.4: 27200614; ECl@ss 6.0: 27200614; ECl@ss 6.2: 27200614; ECl@ss 7.0: 27200614; ECl@ss 8.0: 27200614; ECl@ss 8.1: 27200614; ECl@ss 9.0: 27200614; ECl@ss 10.0: 27200614; ECl@ss 11.0: 27200614; ETIM 5.0: EC011478; ETIM 6.0: EC011478; ETIM 7.0: EC011478; UNSPSC 16.0901: 41112410
