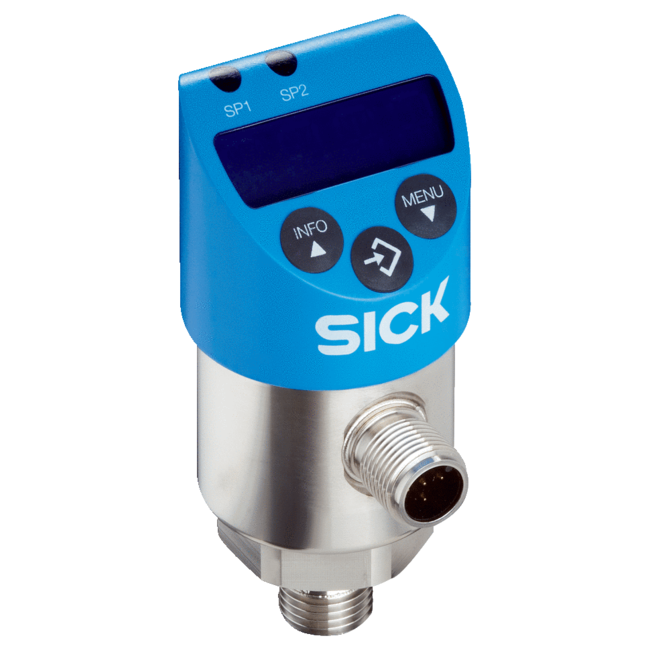

PBS-RB025SGESS0AMA0Z SICK6054278PBSRB025SGESS0AMA0Z

Features: Medium: Liquid, gaseous; Pressure type: Gauge pressure; Pressure unit: bar; Measuring range: 0 bar ... 25 bar; Process temperature: –20 °C ... +85 °C; Zero point adjustment: Max. + 3 % of span; Output signal: 2 x PNP; Rotatable housing: Display against housing with electrical connection: 330 °Housing against process connection: 320 °; Display: 14-segment-LED, blue, 4-digits, height 9 mm, electronically turnable by 180°Accuracy: ≤ 1 % of span ± 1 digitUpdate: 1,000, 500, 200, 100 ms (adjustable); Mechanics/electronics: Process connection: G ½ B according to EN 837; Wetted parts: Pressure connection: stainless steel 316LPressure sensor: stainless steel 316L (for measurement ranges from 0 bar ... 10 bar rel stainless steel 13-8 PH); Internal transmission fluid: Silicone oil (only with pressure ranges < 0 bar ... 10 bar and ≤ 0 bar abs ... 25 bar abs); Pressure port: 3.5 mm, Standard; Housing material: Lower body: stainless steel 304, Plastic head: PC + ABS, Buttons: TPE-E, Display window: PC; Connection type: Round connector M12 x 1, 4-pin, IP67; Supply voltage: 15 V DC ... 35 V DC; Power consumption: 45 mA (for configurations without analog output signal)70 mA (for configurations with analog output signal); Total current consumption: Max. 350 mA / 570 mA (incl. switching current); Electrical safety: Protection class: IIIOvervoltage protection: 40 V DCShort-circuit protection: QA, Q1, Q2 towards MReverse polarity protection: L+ to M; Isolation voltage: 500 V DC; CE-conformity: Pressure equipment directive: This instrument is a pressure accessory as defined by the directive 97/23/EC, EMC directive: 2004/108/EC, EN 61326-2-3; Weight sensor: Approx. 200 g; Seal: Without seal; Enclosure rating: IP67; Protection class III: ✔; MTTF: 349 years; Performance: Non-linearity: ≤ ± 0.5 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2; Accuracy: ≤ ± 1 % of the span; Setting accuracy of switching outputs: ≤ ± 0.5 % of span; Response time: 3 ms; Long-term drift/one-year stability : ≤ 0.2 % of the span according to IEC 61298-2; Temperature coefficient in rated temperature range: Mean TC of zero point: ≤ 0.2% of span / 10 K, Mean TC of span ≤ 0.2 % of span / 10 K; Rated temperature range: 0 °C ... +80 °C; Service life: Minimum 100 Mio. life cycles; Ambient data: Ambient temperature: –20 °C ... +80 °C; Storage temperature: –20 °C ... +80 °C; Relative humidity: ≤ 90 %; Shock load: 50 g according to IEC 60068-2-27 (mechanical shock); Vibration load: 10 g according to IEC 60068-2-6 (vibration under resonance); Classifications: ECl@ss 5.0: 27200620; ECl@ss 5.1.4: 27200620; ECl@ss 6.0: 27200620; ECl@ss 6.2: 27200620; ECl@ss 7.0: 27200620; ECl@ss 8.0: 27200620; ECl@ss 8.1: 27200620; ECl@ss 9.0: 27200620; ECl@ss 10.0: 27200620; ECl@ss 11.0: 27200620; ETIM 5.0: EC000243; ETIM 6.0: EC000243; ETIM 7.0: EC000243; UNSPSC 16.0901: 41112409
