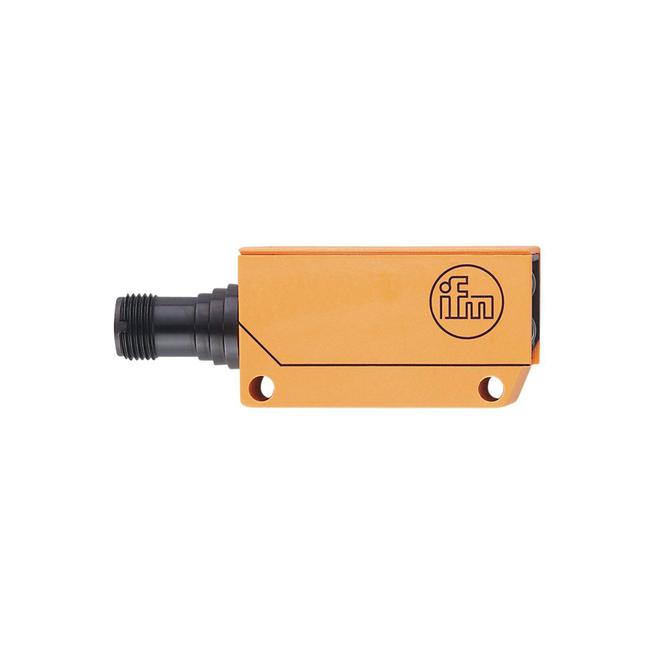

OU5047 ifm ⍾ OUE-HPKG/US-100-DPO

Through-beam sensor receiver; Operating voltage [V] : 10...55 DC; Protection class : III; Reverse polarity protection : yes; Type of light : infrared light; Wave length [nm] : 880; Electrical design : PNP; Output function : light-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 140; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Transmitter / receiver : receiver; Range [m] : < 6; Range adjustable : yes; Ambient temperature [°C] : -25...80; Housing : rectangular; Materials : PPO modified; Lens material : glass; Lens alignment : side lens; Items supplied : Angle bracket: 1, E20211

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

20; ((24 V)) mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 67

Weight

73.5 g

Dimensions

28 x 16 x 51 mm
