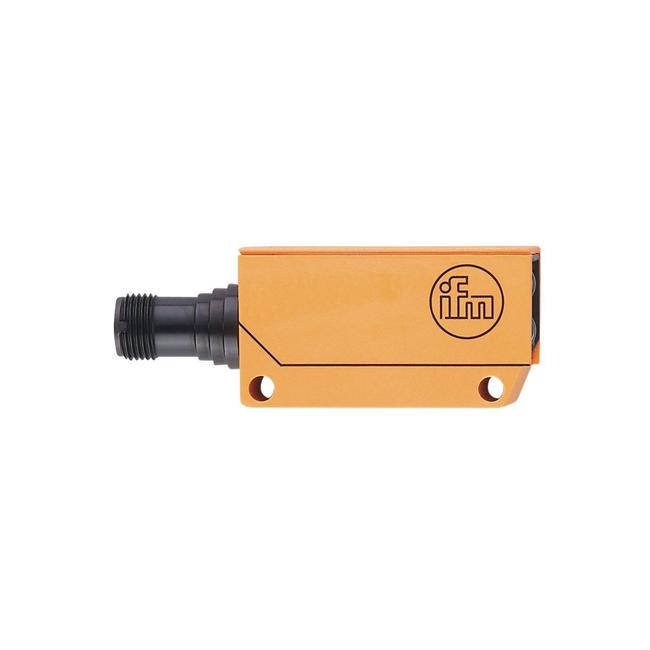

OU5045 ifm ⍾ OUS-OOKG/US-100

Through-beam sensor transmitter; Operating voltage [V] : 10...55 DC; Protection class : III; Reverse polarity protection : yes; Type of light : infrared light; Wave length [nm] : 880; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Transmitter / receiver : transmitter; Range [m] : < 6; Range adjustable : no; Max. light spot diameter [mm] : 734; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...80; Housing : rectangular; Materials : PPO modified; Lens material : glass; Lens alignment : side lens; Items supplied : Angle bracket: 1, E20211

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

20; ((24 V)) mA

Voltage supply

24 V

Display

operation: 1 x LED, yellow

Degree of protection

IP 67

Weight

68.5 g

Dimensions

28 x 16 x 51 mm
