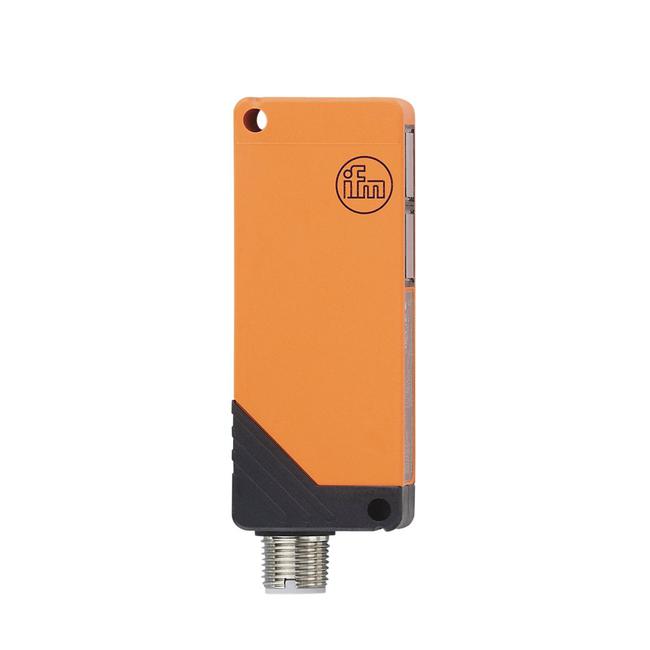

OT5009 ifm ⍾ OTE-FPKG/US-100-IPF

Through-beam sensor receiver; Operating voltage [V] : 10...50 DC; Protection class : II; Reverse polarity protection : yes; Type of light : infrared light; Wave length [nm] : 880; Electrical design : PNP; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 150; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Transmitter / receiver : receiver; Range [m] : < 10; Range adjustable : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : PBT; Lens material : PMMA; Lens alignment : side lens; Items supplied : Angle bracket: 1, E20461 | screwdrivers

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

30; ((24 V)) mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 65

Weight

161 g

Dimensions

75 x 19 x 30 mm
