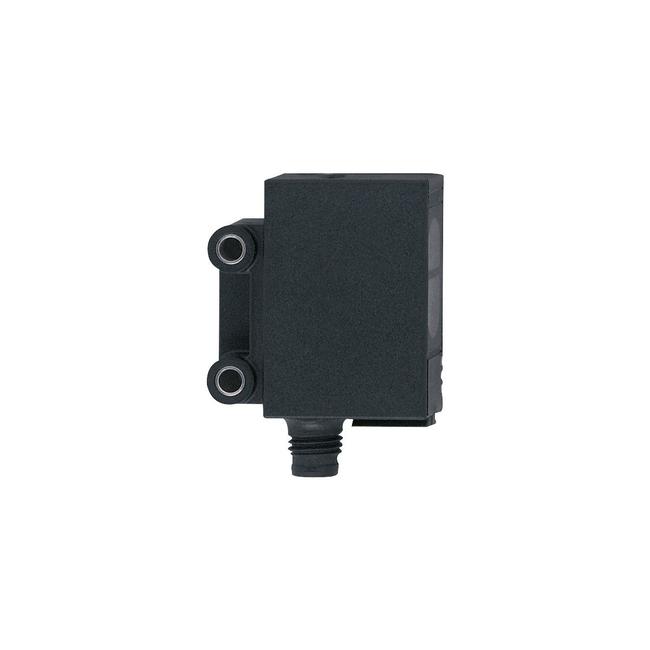

OJ5154 ifm ⍾ OJHLFPKG/SO/AS

Laser diffuse reflection sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 650; Typ. lifetime [h] : 50000; Electrical design : PNP; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range [mm] : 15...200; (white paper 200 x 200 mm 90% remission); Range adjustable : yes; Diameter of the smallest detectable object [mm] : 2; Max. light spot width [mm] : 2; Max. light spot height [mm] : 1; Background suppression available : yes; Ambient temperature [°C] : -10...60; Housing : rectangular; Materials : housing: ABS; LED window: SEPS; pushbutton: SEPS; Lens material : PMMA; Lens alignment : side lens; Electronic lock : yes; Items supplied : screws: 2 | spring washers: 2 | Nuts: 2

Type

Laser sensors

Connection

Connector: 1 x M8

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

13 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 67

Weight

40.7 g

Dimensions

35 x 11 x 24 mm
