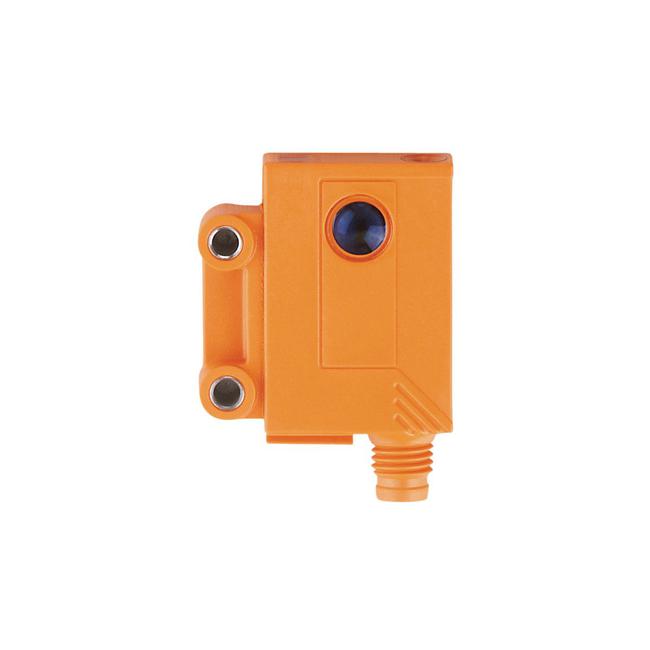

OJ5109 ifm ⍾ OJE-FPKG/FO/AS
Through-beam sensor receiver; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 660; Electrical design : PNP; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1200; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Transmitter / receiver : receiver; Range [m] : < 10; Range adjustable : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS; Lens material : glass; Lens alignment : front lens; Electronic lock : yes; Items supplied : Basic clip: 1, E20964 | screws: 2 x M3 x 16 | spring washers: 2 | Nuts: 2
- Connection
- Connector: 1 x M8
- No. of inputs/outputs
- Number of digital outputs: 2
- Current consumption
- < 12 mA
- Voltage supply
- 24 V
- Display
- switching status: 1 x LED, yellow | operation: 1 x LED, green | function: 1 x LED, red
- Degree of protection
- IP 67
- Weight
- 39.2 g
- Dimensions
- 35 x 24 x 11 mm
