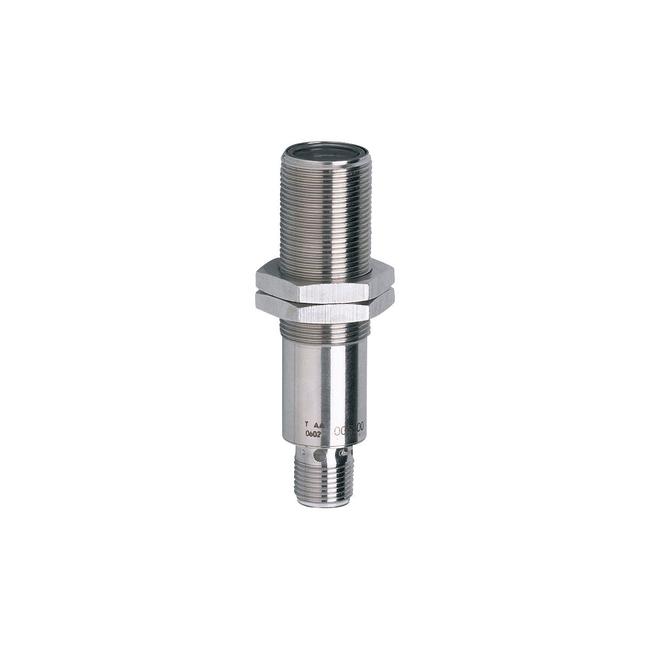

OGS500 ifm ⍾ OGS-OOKG/US100

Through-beam sensor transmitter; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 624; Transmitter / receiver : transmitter; Range [m] : < 25; Range adjustable : no; Max. light spot diameter [mm] : 1000; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...80; Housing : threaded type; Thread designation : M18 x 1; Materials : stainless steel (1.4404 / 316L); PA; EPDM; Lens material : PMMA; Items supplied : lock nuts: 2 x

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

20 mA

Voltage supply

24 V

Display

operation: 1 x LED, green

Degree of protection

IP 67

Weight

62.3 g

Dimensions

M18 x 1 / L = 72 mm
