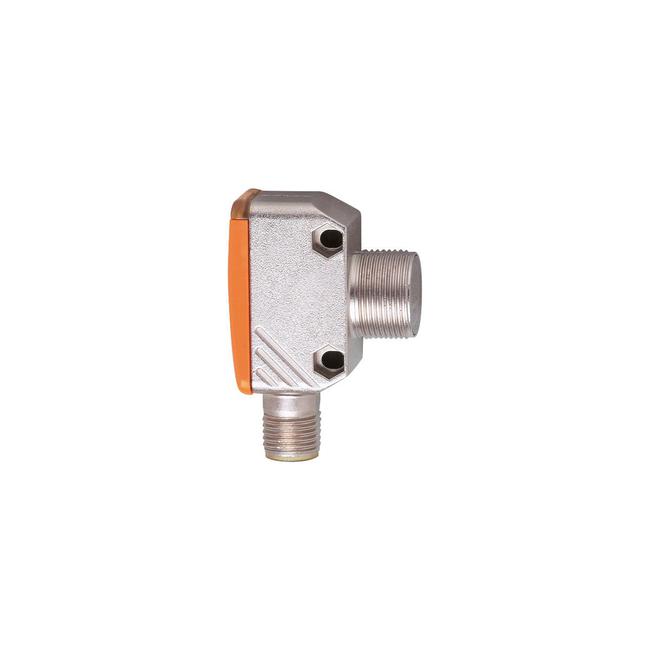

OGS080 ifm ⍾ OGS-OOOW/LS/CUBE

Through-beam sensor transmitter; Frequency AC [Hz] : 47...60; Operating voltage [V] : 20...250 AC; Protection class : II; (double insulated); Type of light : red light; Wave length [nm] : 633; Transmitter / receiver : transmitter; Range [m] : < 20; Range adjustable : no; Max. light spot diameter [mm] : 800; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...60; Housing : rectangular; Thread designation : M18 x 1; Materials : diecast zinc; PEI; Lens material : PMMA; Lens alignment : side lens; Items supplied : lock nut: 1 x

Type

Photoelectric sensors

Connection

Connector: 1 x 1/2"

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 5 mA

Voltage supply

24 V

Display

operation: 1 x LED, green

Degree of protection

IP 67

Weight

59.5 g

Dimensions

M18 x 1 mm
