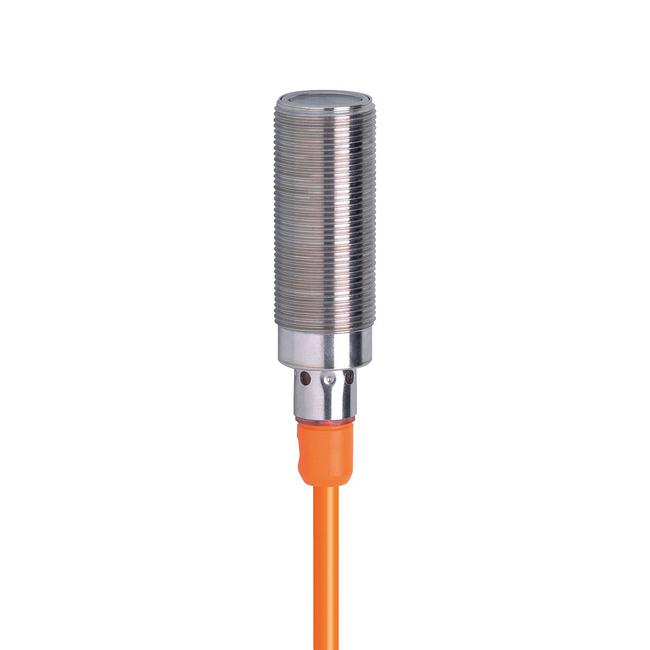

OGE302 ifmOGE-DPKG/6M

Through-beam sensor receiver; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Electrical design : PNP; Output function : dark-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 150; (200 (...60 °C)); Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Transmitter / receiver : receiver; Range [m] : < 20; Range adjustable : no; Ambient temperature [°C] : -25...80; Housing : threaded type; Thread designation : M18 x 1; Materials : housing: stainless steel (1.4404 / 316L); Sealing: EPDM; Lens material : PMMA; Items supplied : lock nuts: 2 x

Connection
Cable: 6 m, PVC; 3 x 0.34 mm²
No. of inputs/outputs
Number of digital outputs: 2
Current consumption
10 mA
Voltage supply
24 V
Display
switching status: 1 x LED, yellow
Degree of protection
IP 65; IP 67; IP 68; IP 69K
Weight
255.8 g
Dimensions
M18 x 1 / L = 68.6 mm
