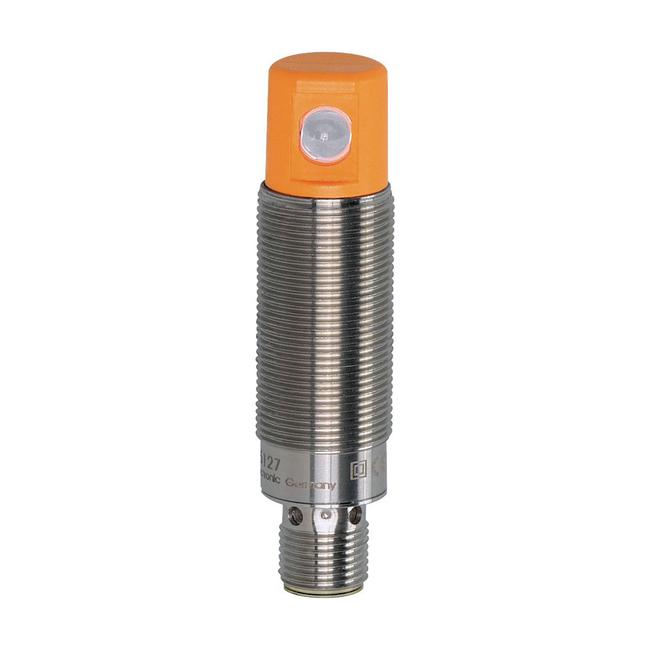

OG5126 ifm ⍾ OGP-DPKG/US/90°

Retro-reflective sensor; Operating voltage [V] : 10...30 DC; ("supply class 2" to cULus); Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 660; Electrical design : PNP; Output function : dark-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 500; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range referred to prismatic reflector [m] : 3; (Prismatic reflector Ø 80 E20005); Range adjustable : no; Max. light spot diameter [mm] : 96; Light spot dimensions refer to : at maximum range; Polarisation filter available : yes; Ambient temperature [°C] : -25...60; Housing : threaded type; Thread designation : M18 x 1; Materials : stainless steel; ABS; Lens material : PMMA; Items supplied : Nuts: 2 | lock washers: 2

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 22 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 68

Weight

59.2 g

Dimensions

M18 x 1 / L = 59.3 mm
