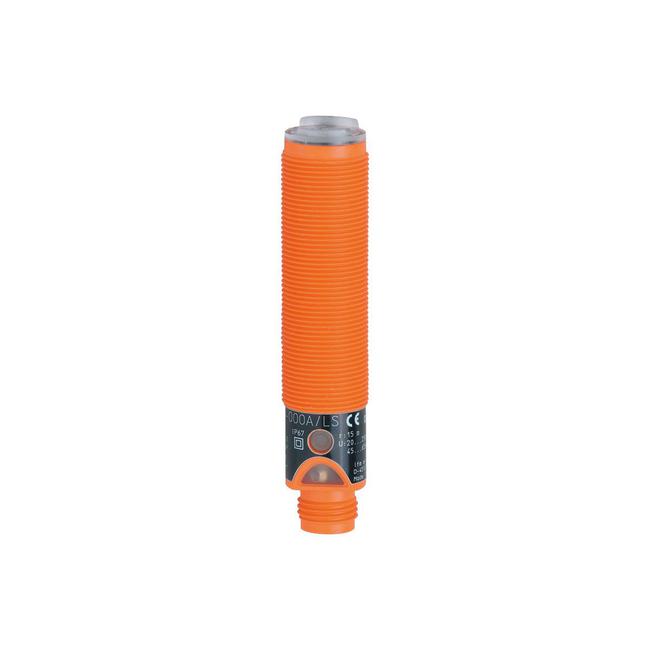

ifm OG0030

OG0030 ifm ⍾ OGS-OOOA/LS-100-AK

Through-beam sensor transmitter; Frequency AC [Hz] : 47...63; Operating voltage [V] : 20...250 AC/DC; Protection class : II; Type of light : infrared light; Wave length [nm] : 880; Short-circuit protection : no; Overload protection : no; Transmitter / receiver : transmitter; Range [m] : < 15; Range adjustable : no; Max. light spot diameter [mm] : 2000; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...80; Housing : threaded type; Thread designation : M18 x 1; Materials : PBT; Lens material : PMMA; Items supplied : lock nuts: 2 x

Connection
Connector: 1 x 1/2"
No. of inputs/outputs
Number of digital outputs: 2
Current consumption
< 5 mA
Voltage supply
24 V
Display
operation: 1 x LED, green
Degree of protection
IP 67
Weight
38 g
Dimensions
M18 x 1 / L = 76 mm
