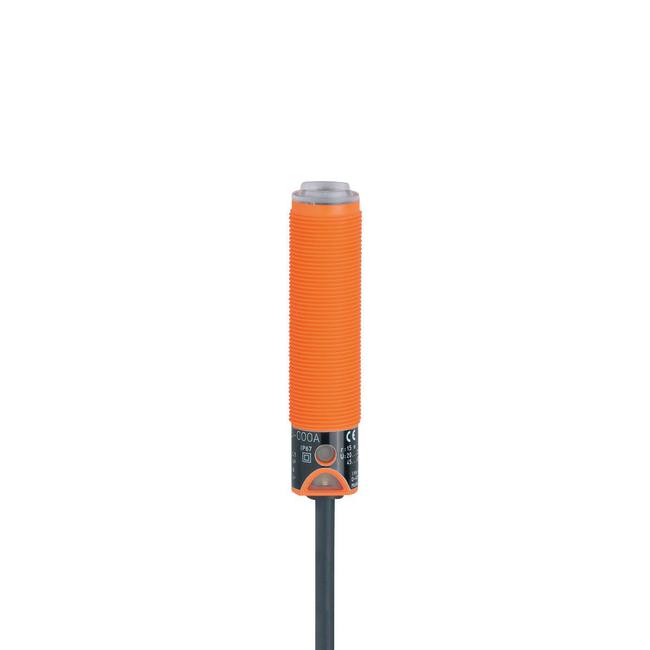

OG0029 ifm ⍾ OGE-HBOA

Through-beam sensor receiver; Frequency AC [Hz] : 47...63; Operating voltage [V] : 20...250 AC/DC; Protection class : II; Reverse polarity protection : no; Type of light : infrared light; Wave length [nm] : 880; Output function : light-on mode; Max. voltage drop switching output DC [V] : 8; Max. voltage drop switching output AC [V] : 8; Minimum load current [mA] : 5; Max. leakage current [mA] : 1.7; Permanent current rating of switching output AC [mA] : 90; (180 (...40 °C)); Permanent current rating of switching output DC [mA] : 90; (180 (...40 °C)); Short-time current rating of switching output [mA] : 600; (20 ms / 0,5 Hz); Switching frequency AC [Hz] : 25; Switching frequency DC [Hz] : 25; Short-circuit proof : no; Overload protection : no; Transmitter / receiver : receiver; Range [m] : < 15; Range adjustable : yes; Ambient temperature [°C] : -25...80; Housing : threaded type; Thread designation : M18 x 1; Materials : PBT; Lens material : PMMA; Items supplied : lock nuts: 2 x

Connection: Cable: 2 m, PVC; 2 x 0.5 mm²
No. of inputs/outputs: Number of digital outputs: 2
Current consumption: < 5 mA
Voltage supply: 24 V
Display: switching status: 1 x LED, red | function: 1 x LED, red flashing
Degree of protection: IP 67
Weight: 121.7 g
Dimensions: M18 x 1 / L = 78.5 mm
