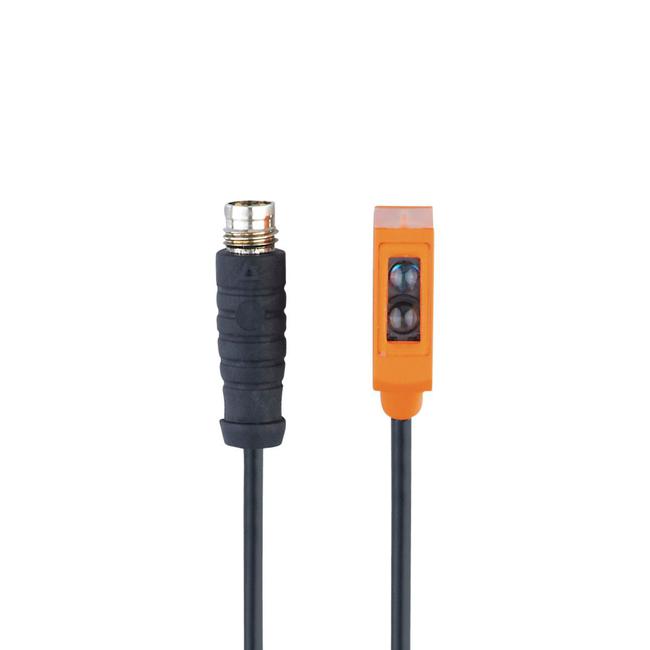

O8P205 ifm ⍾ O8P-DNKG/0,30M/AS/4P

Retro-reflective sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 633; Electrical design : NPN; Output function : dark-on mode; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Range referred to prismatic reflector [m] : 0.02...1.8; (Prismatic reflector Ø 30 E20004); Range adjustable : no; Max. light spot diameter [mm] : 120; Light spot dimensions refer to : at maximum range; Polarisation filter available : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : housing: ABS; stainless steel (1.4404 / 316L); Lens material : PMMA; Lens alignment : side lens

Type

Photoelectric sensors

Connection

Connector: 1 x M8

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

20; ((24 V)) mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 65; IP 67

Weight

22.9 g

Dimensions

28.1 x 8.1 x 14.4 mm
